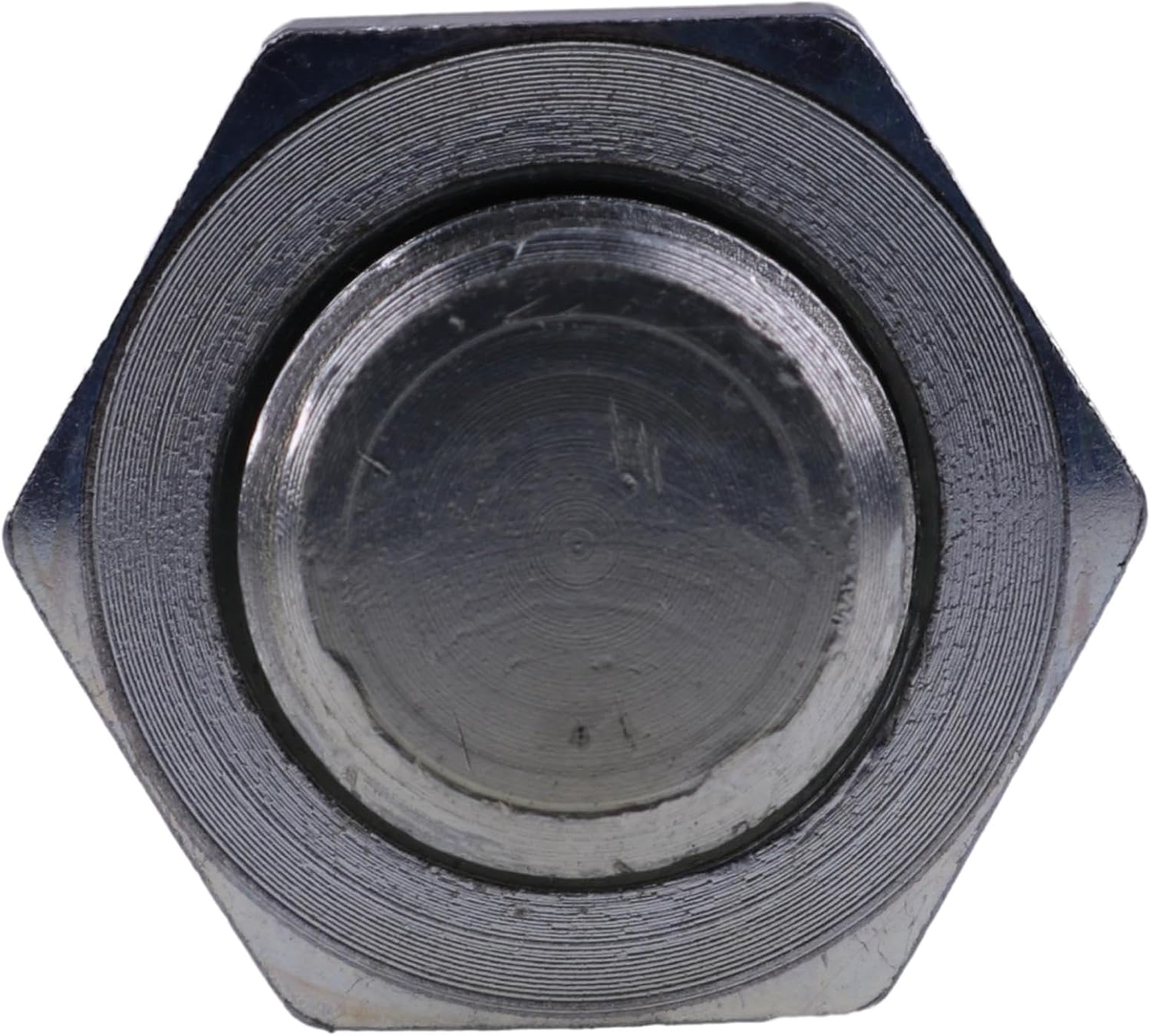

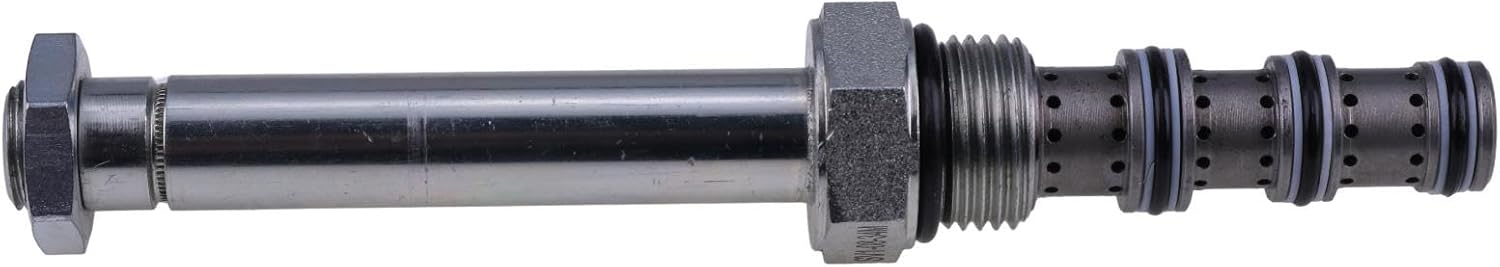

3 Position 4 Port Cartridge Valve DSV-080-34T DSV-080 34T-N compatible with Deltrol
Product details
| Management number | 221431532 | Release Date | 2026/05/03 | List Price | $32.80 | Model Number | 221431532 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Part Number: DSV-080-34T DSV-080 34T-NSpecification: Pressure Max psi: 3000 Pressure Max bar: 207 Flow gpm: 3.0 Flow lpm: 11.4 Cavity: 080-4 Coil:Series 8 K-Coils (External Frame), Series 8 S-Coils (Internal Frame) Valve Style: Spool Operating Pressure: 3000 PSI (207 Bar) Flow: Nominal flow 3 gpm (11.4 L/min.) Internal Leakage: (Per land) 10 in3/min (164 cc/min) max. at 3000 PSI (207 Bar) Temperature: -30°F to +250°F (-35°C to +120°C) Coil Duty Rating: Continuous from 85% to 110% of rated voltage. Current Draw: 12 VDC is 1.3 amps. Minimum Pull-In Voltage: 85% of rated voltage at 3000 PSI (207 Bar) Recommended Filtration: ISO 17/15/13 In-Line Body Material: Anodized 6061T6 aluminum alloy rated at 3000 PSI (207 Bar)
- Part Number: DSV-080-34T DSV-080 34T-N
- DSV-080-34T DSV-080 34T-N Cartridge Valve
- Compatible with Deltrol Cartridge Valve
- Current Draw: 12 VDC 1.3 amps
- Nominal flow 3 gpm (11.4 L/min)
| Brand Name | RONGPAS |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | RONGPAS |
| Exterior Finish | Polished |
| Included Components | Cartridge Valve×1 |
| Manufacturer Part Number | DSV-080-34T DSV-080 34T-N |
| Manufacturer Warranty Description | 90-Day Warranty |
