330mm/13" Full Automatic Creasing and Perforating Machine Digital Touch Control

Introduction: <br>The full automatic digital creasing machine is a professional device for forming creases and dotted lines on different paper sheets such as coated paper, laminated paper and varnish paper. The machine has the advantages of achieving automatic feeding of paper sheets, perfectly integrating the transverse creasing and perforating function and the longitudinal perforating function, saving time and labor, reducing the energy consumption and improving the working efficiency. The electric creasing machine can be widely used in various places such as the printing houses, packing houses and office buildings, and is an ideal product for customers. <br> <br>Notice：No free return service is provided for non-quality problems. <br> <br>Parameter: <br>Power supply：AC110V 60Hz 200W <br>Paper size：210*297mm-330*900mm (8.27''*11.69''-12.99''*35.43'') <br>Paper type：Coated paper, laminated paper, varnish paper, etc. <br>Paper loading capacity：60mm (2.36'') <br>Creasing width：1.0mm standard configuration <br>Working precision：±0.3mm <br>Working speed：2600 sheets/h (A4/one crease) <br>Creasing/perforating times：0-32 times <br>Paper thickness：0.1-0.35mm (creasing), 0.1-0.2mm (transverse perforating) <br>Operation interface：Touch screen <br>Paper feeding mode：Top air suction automatic paper feeding <br>Net weight：74KG (163.14LB) <br>Tool：3 tool sets (Transverse creasing tool set*1, transverse perforating tool set*1, longitudinal perforating tool set*1) <br> <br>Item included: 122164 <br>Full Automatic Electric Digital Creasing Machine 13'' 110V

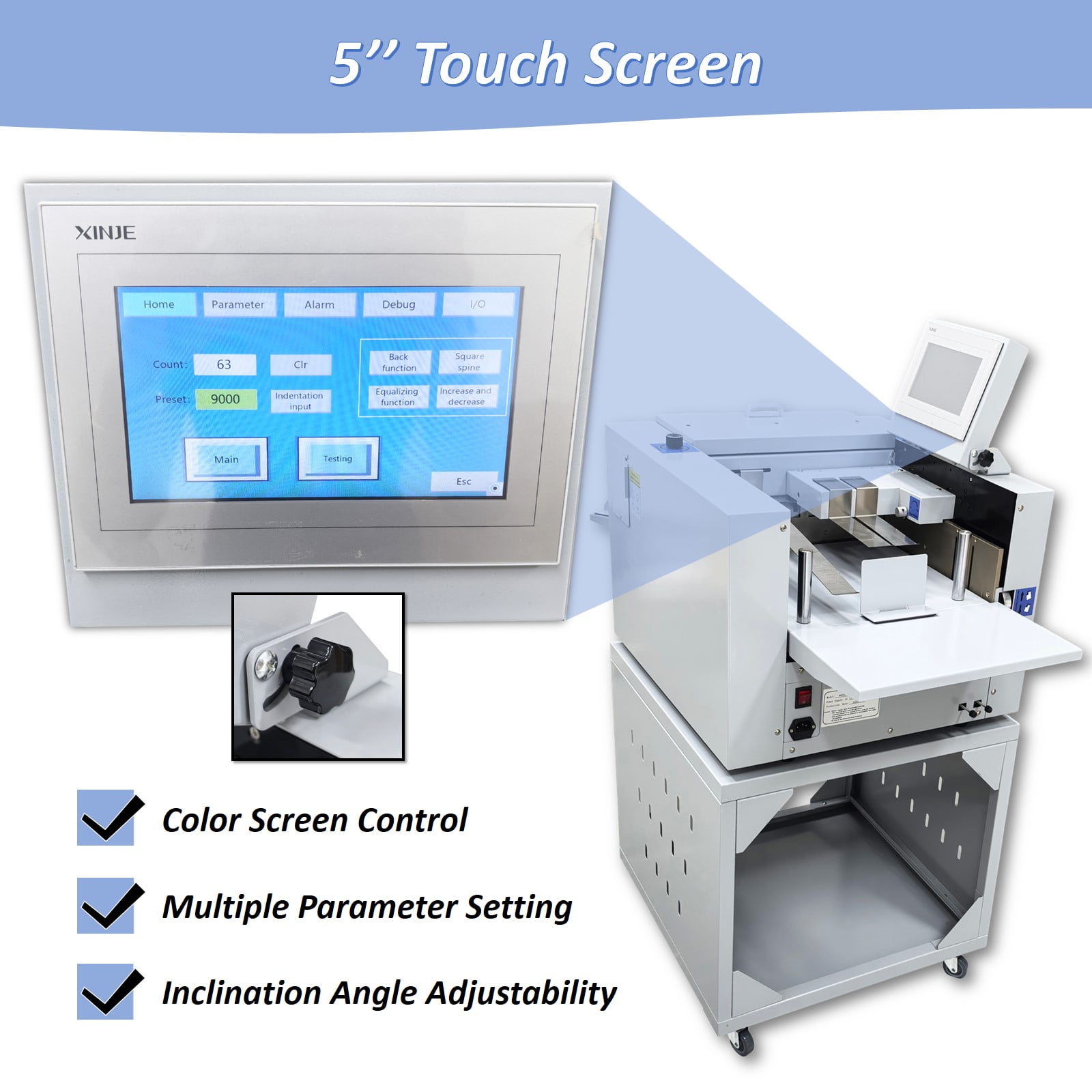

• ‌The 5'' intelligent touch screen is designed for setting and adjusting the multiple technical parameters, so the color screen touch control and display are well achieved, and different parameters can be tested and adjusted according to the actual condition. The inclination angle of the touch screen can be easily adjusted by the black screws as required, operation is easy and effortless, and the good adaptability is achieved.

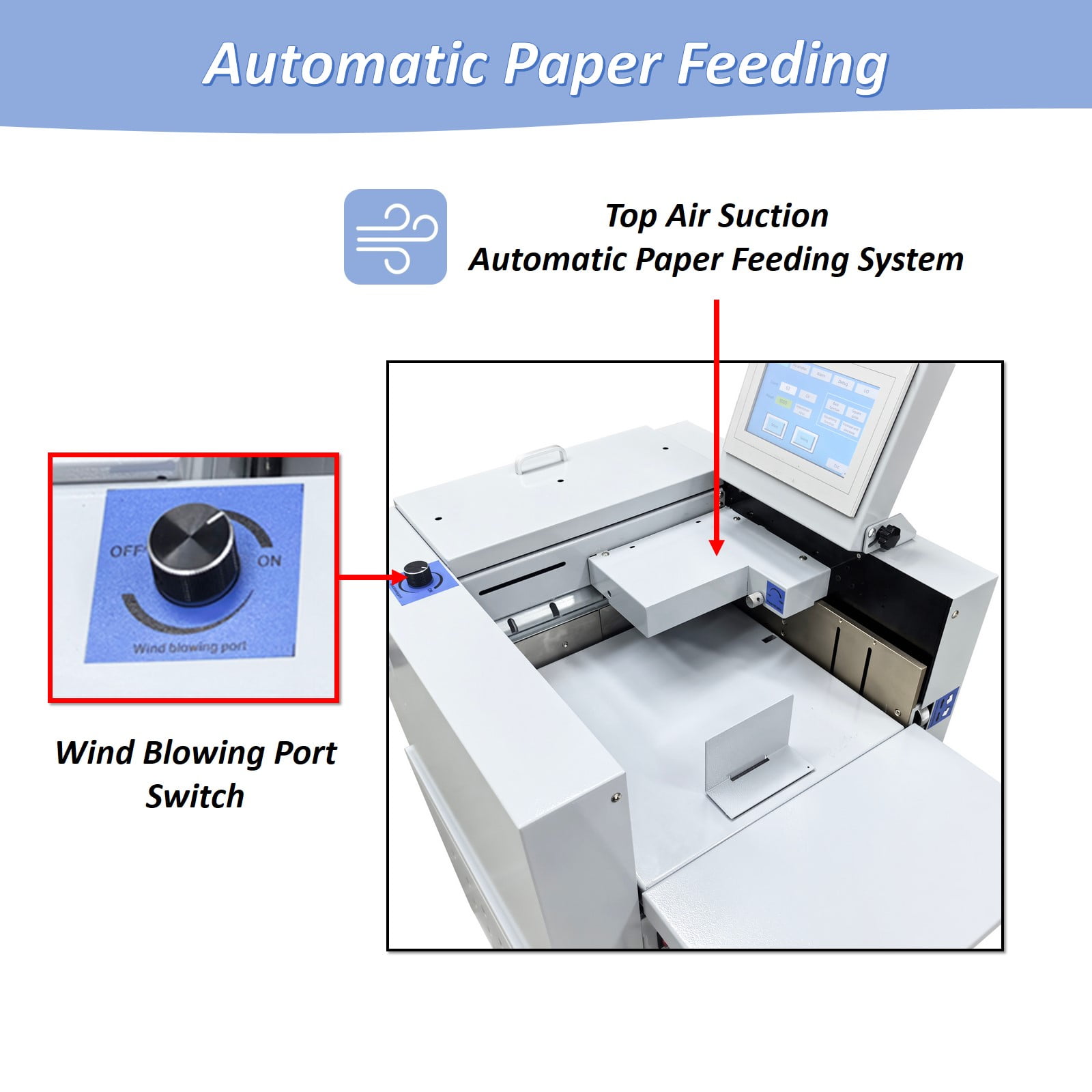

• The top air suction automatic paper feeding system is used for automatically feeding paper instead of manual feeding, thereby greatly reducing the manual labor, and improving the working efficiency. The wind blowing port can be controlled to be opened and closed, and the air volume can be freely adjusted through the touch screen to ensure that various paper sheets with different thicknesses can be smoothly fed.

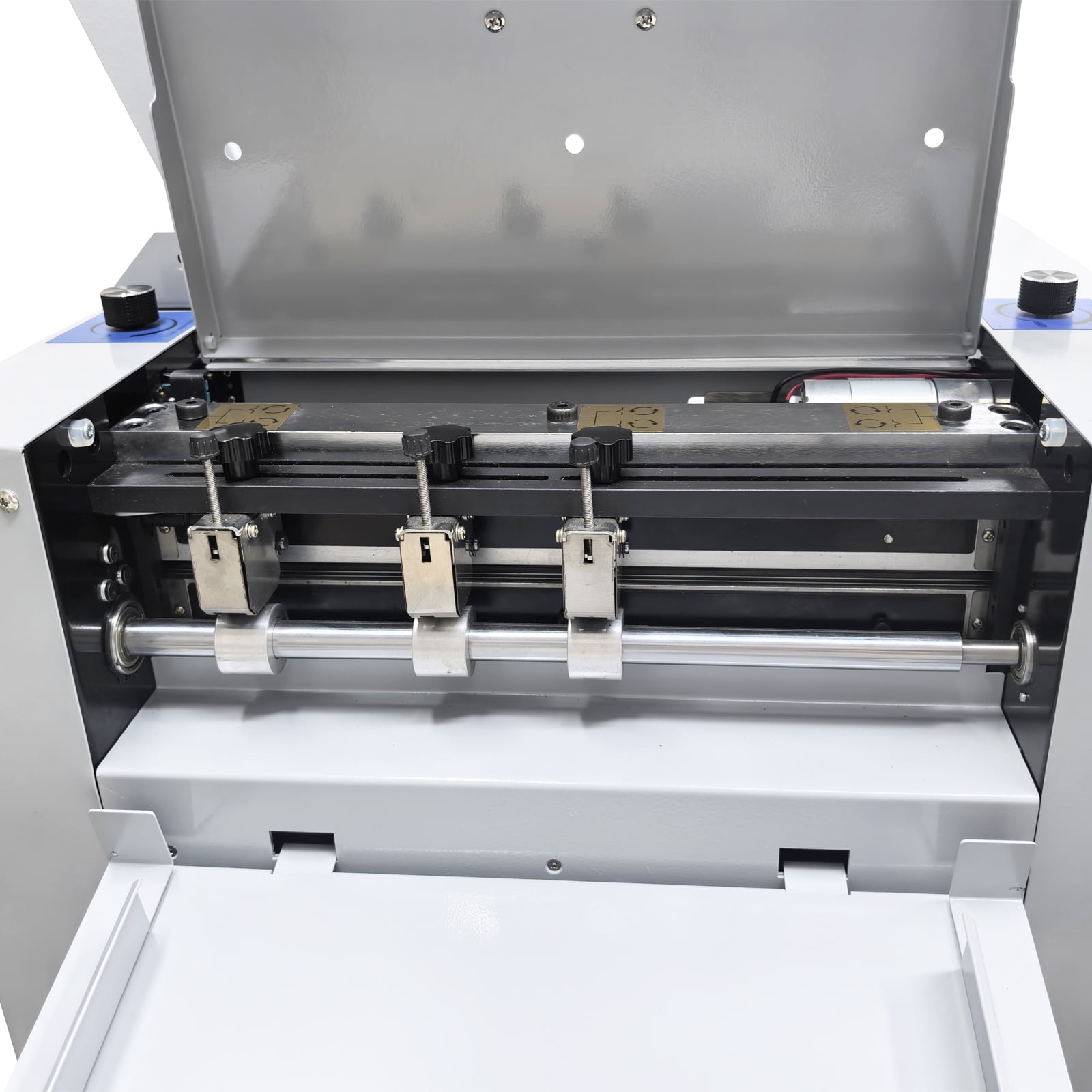

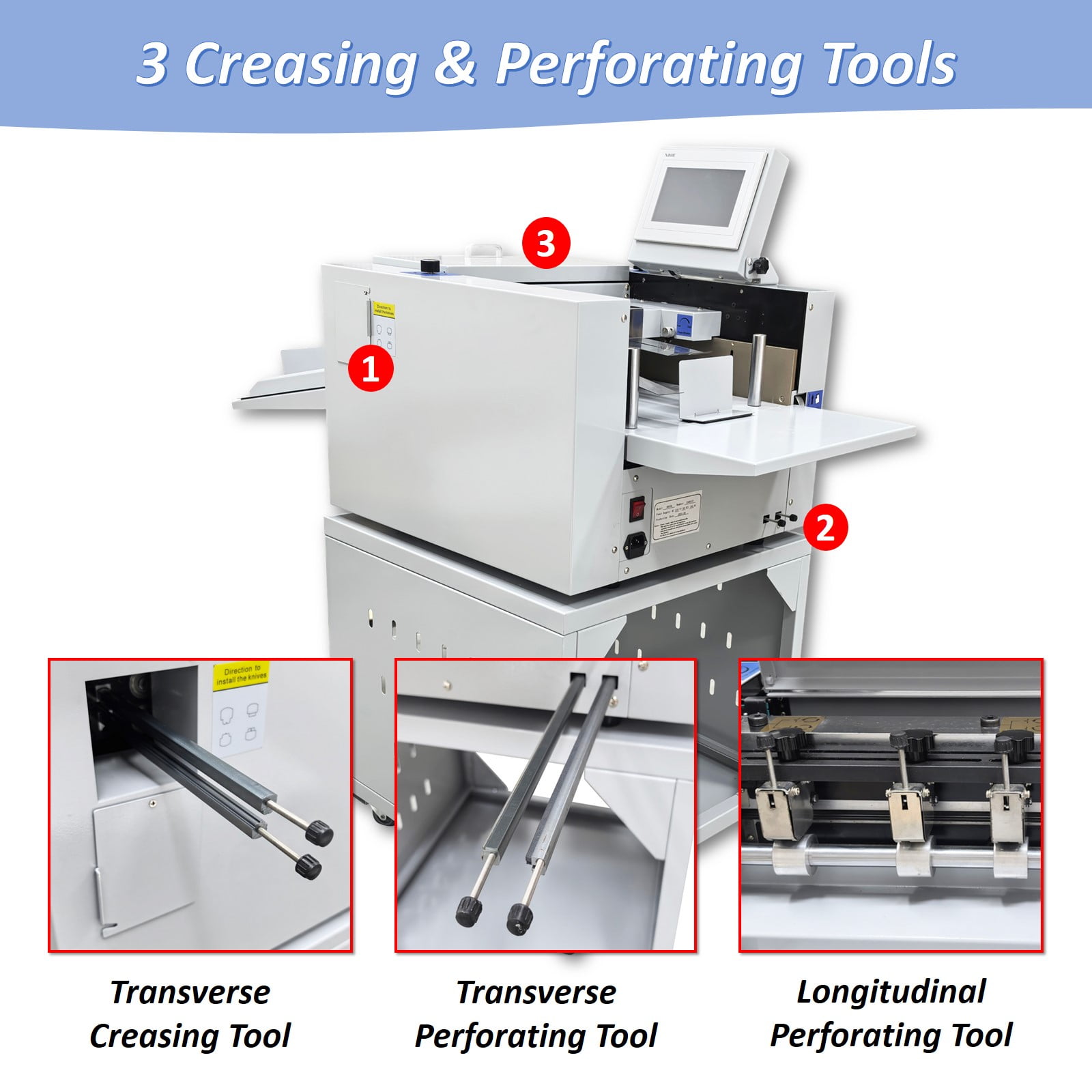

• The automatic creasing machine is equipped with 3 tools for transverse creasing and perforating and longitudinal perforating operation, thereby achieving the purpose of accurately completing the transverse and longitudinal dotted lines at a time and simplifying the complex operating procedure. The creasing and perforating tools are conveniently installed and stored in a hidden mode, so the safety protection is enhanced, and the service life of each tool is well prolonged.

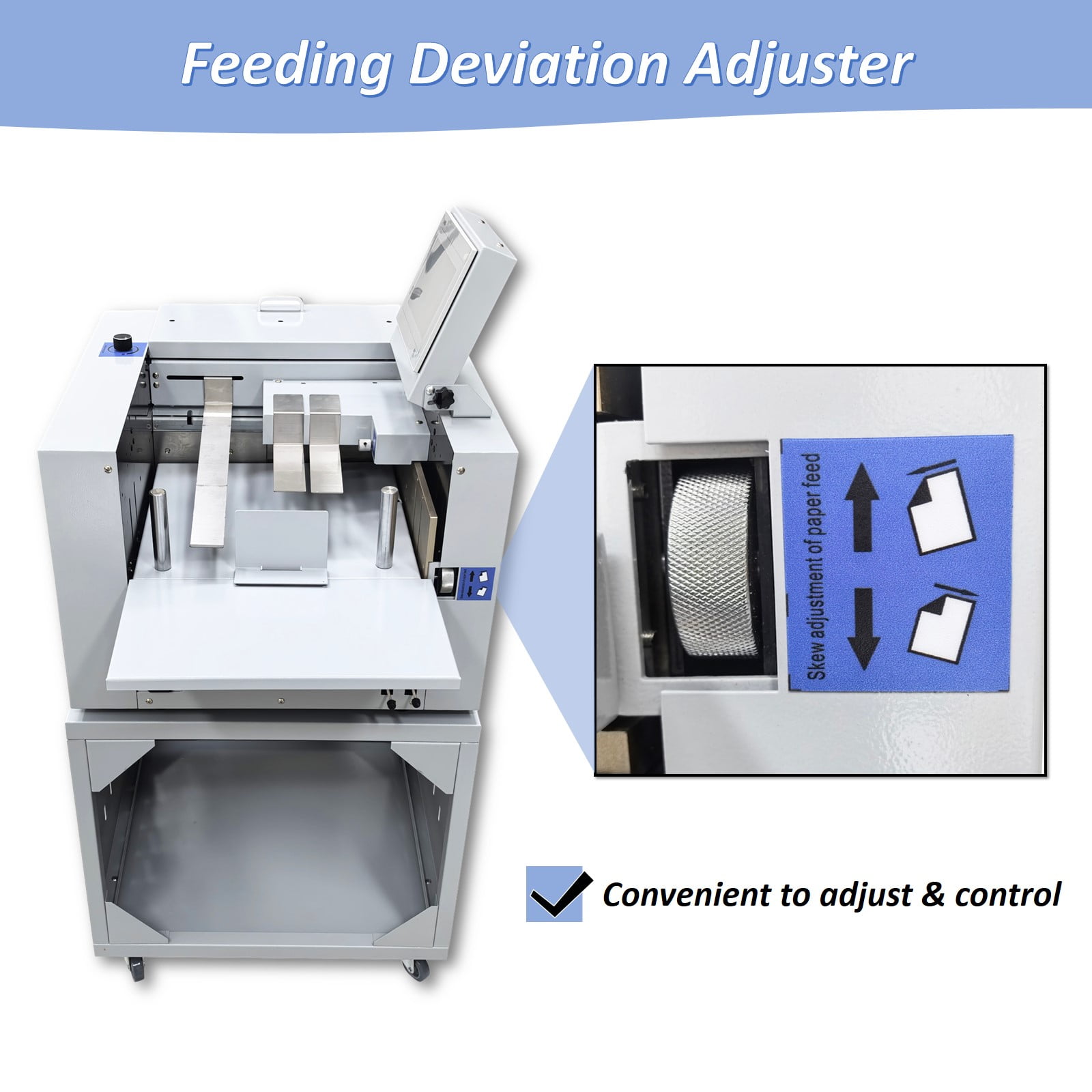

• The knurled rolling wheel is used for adjusting the skewed paper fed by the feeding platform in the working process. When the paper sheets deviate, the operator can rotate the rolling wheel to correct the paper feeding deviation according to the specific skewing direction, so the feeding deviation can be effectively eliminated, and the normal feeding of paper is guaranteed.

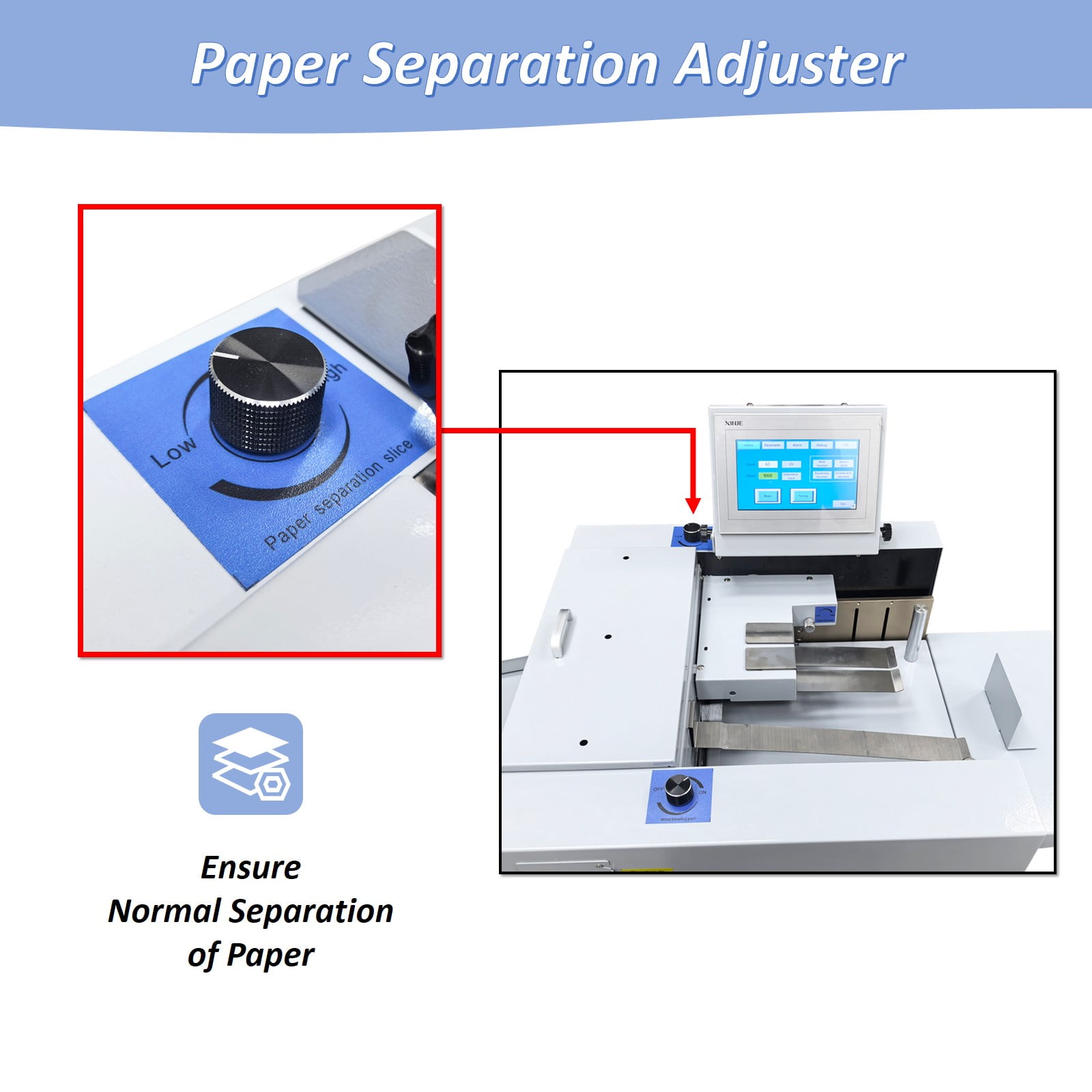

• By the use of the paper separation adjusting knob, the paper feeding baffle piece can be accurately adjusted to control the paper feeding number, thereby effectively avoiding simultaneous feeding of multiple paper sheets and ensuring that the paper sheets are fed one by one. The paper separation adjusting effect is better, and precision feeding of paper is greatly facilitated.

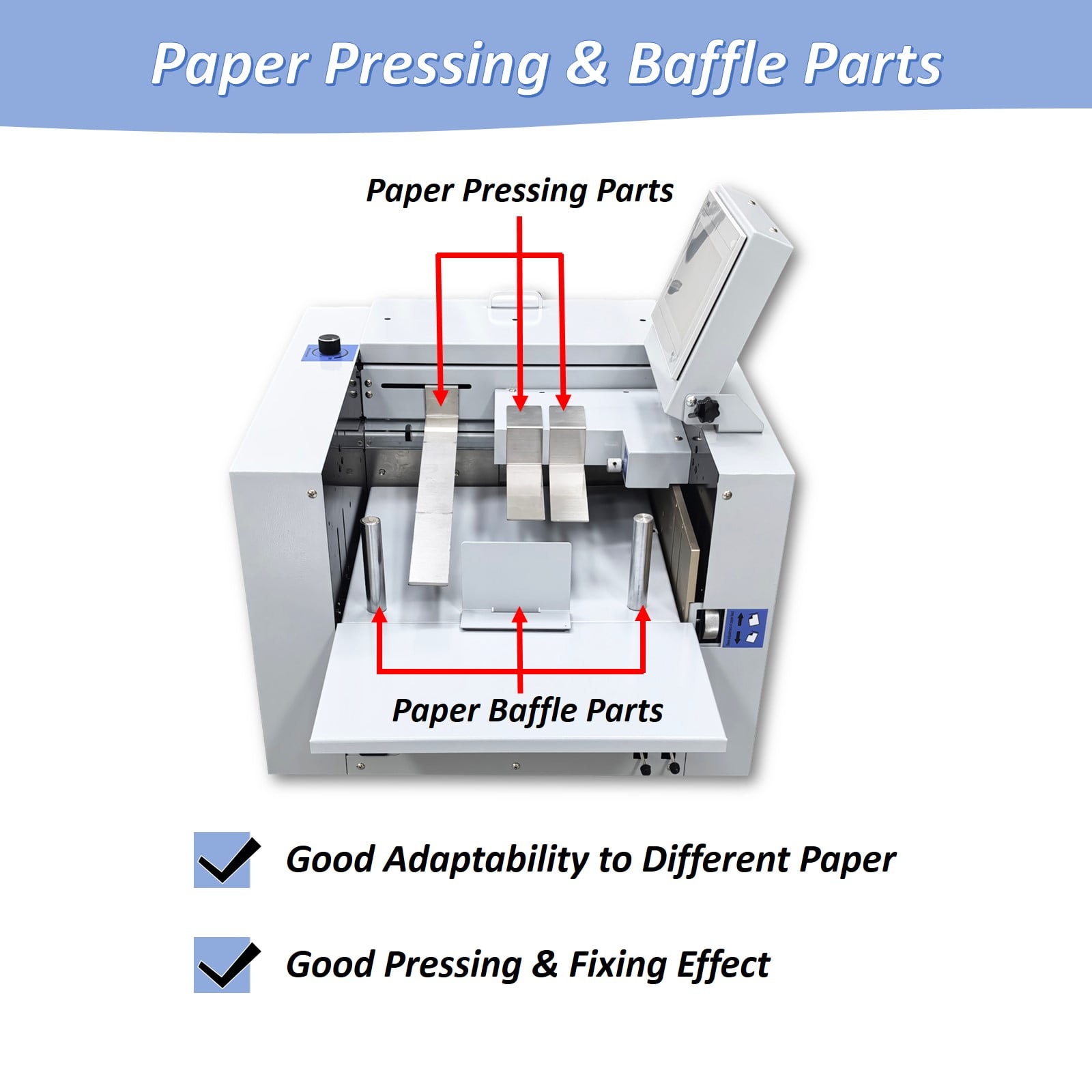

• The automatic creasing machine is equipped with a long paper pressing parts for A3 paper and two short paper pressing parts for A4 paper, so the paper sheets of different specifications can be stably pressed and prevented from moving after being lifted, and the adaptability is enhanced. The paper baffle parts are also designed for limiting the position of paper, thereby facilitating the paper suction and feeding operation.

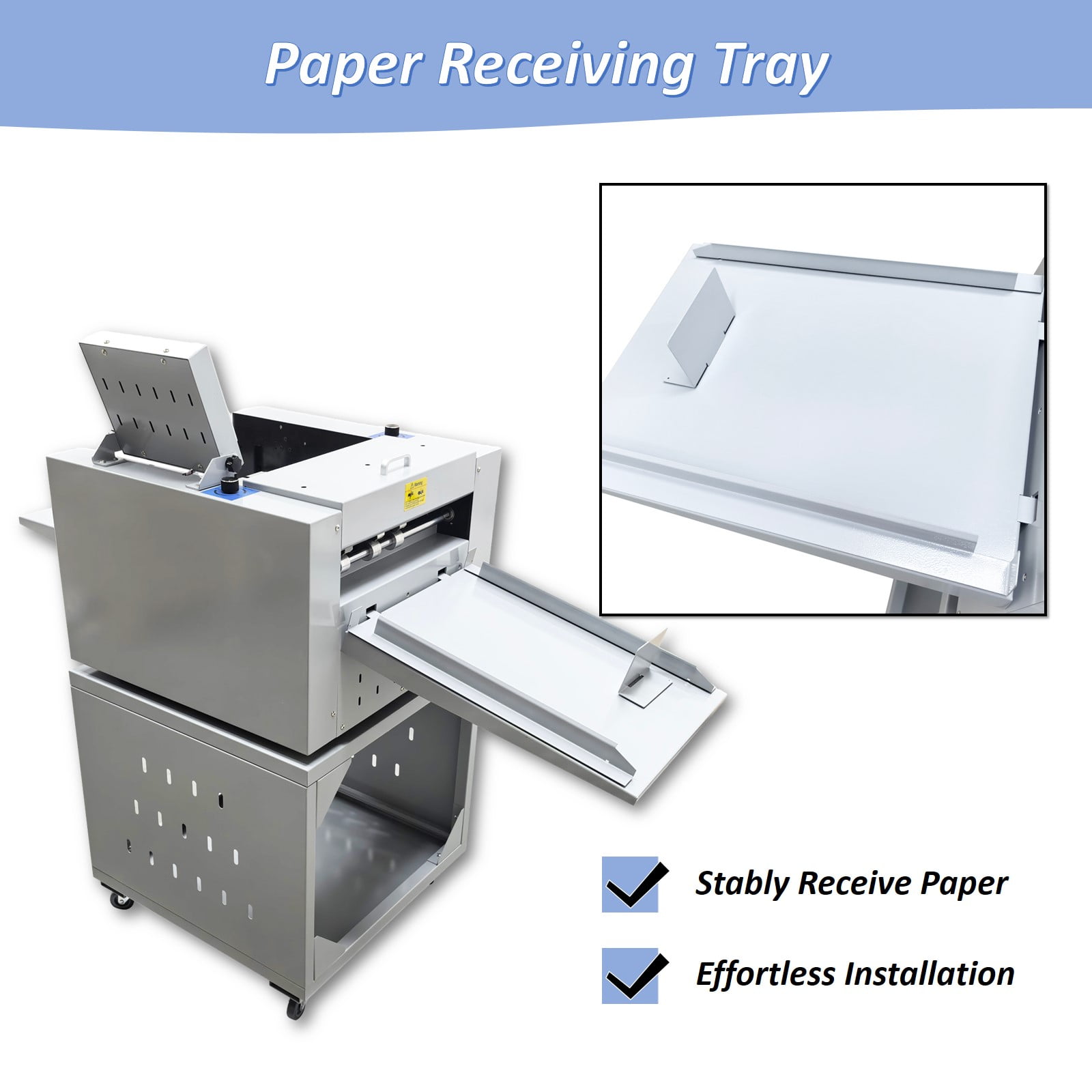

• A large paper receiving tray is detachably hung below the paper outlet and used for receiving and collecting the finished products neatly and orderly. The baffles on the three sides can effectively limit the paper and prevent the paper from scattering after the creasing or perforating operation is accomplished.

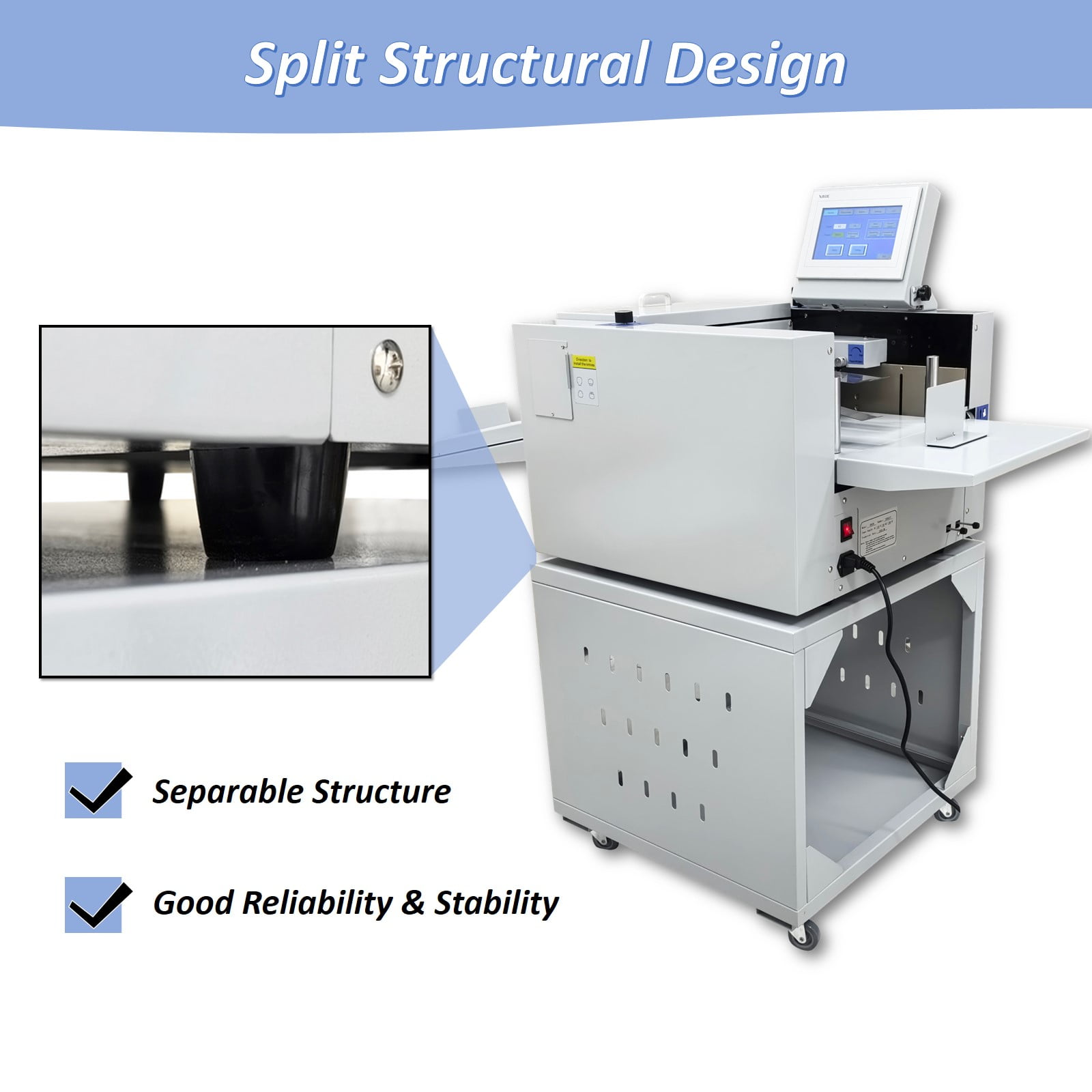

• The automatic creasing machine is composed of a machine body and a cabinet which can be used independently or cooperatively according to the working environments. The stable supporting legs are designed for the machine body so that the machine body can be stably supported and placed on the cabinet.
