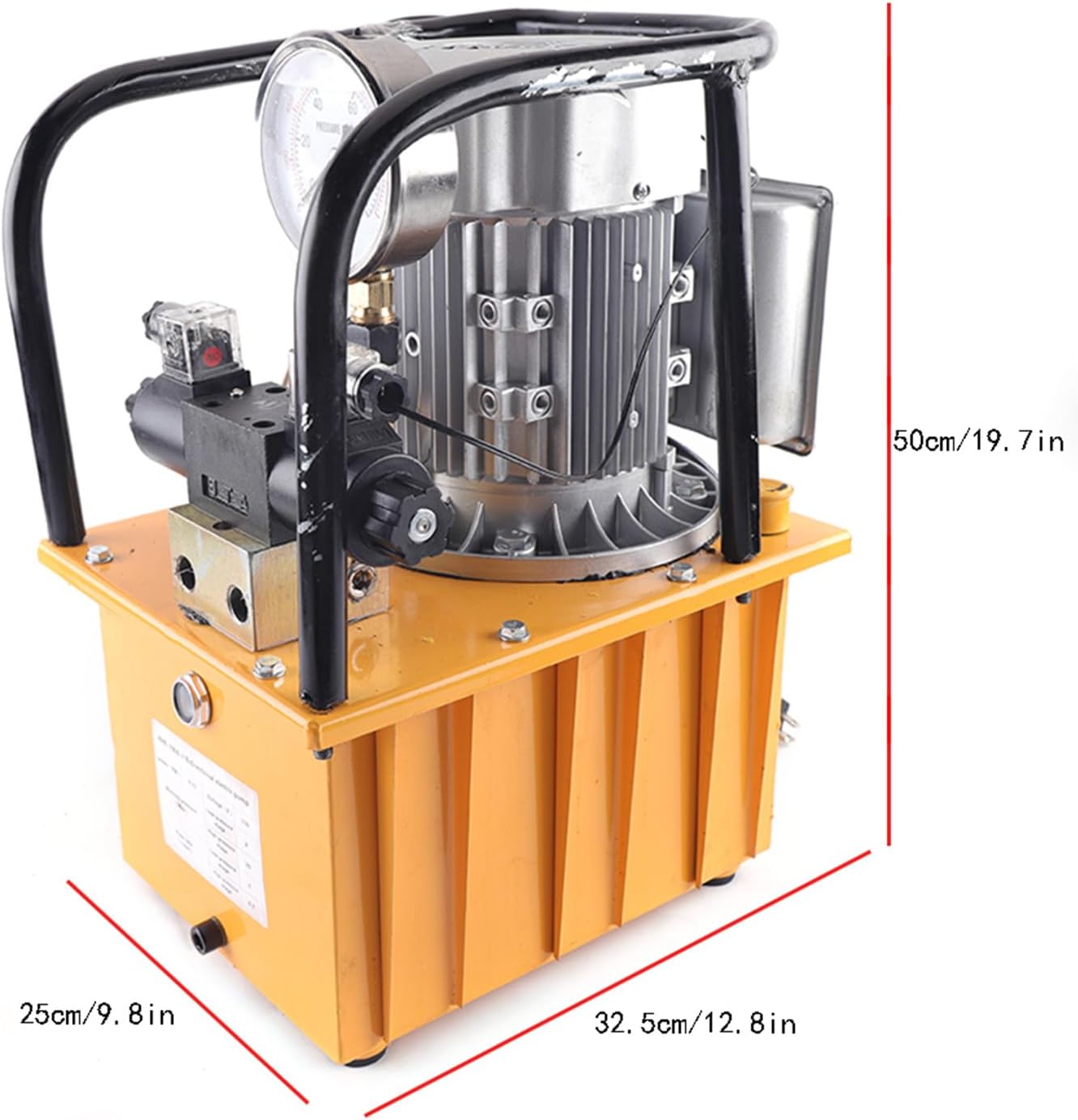

750W Electric Hydraulic Pump, 10000PSI 110V Driven Hydraulic Pump Double Solenoid Valve Double-Acting 7L Capacity Pressure Gauge Oil Pump Dual-Act Pedal Solenoid Valve

Product Specification：Input voltage: AC 110V 60HZFlow rate: 0.6L/min(＞7Mpa) - 5L/min(＜7Mpa)Working pressure: 290PSI - 10152PSI(2Mpa - 70Mpa)Oil capacity: 7LMotor power: 750WMotor speed: 1400r/MinG.W: 30KGOperation Instruction:1. Open the filler before use, the electric pump and power connections before oiling, then press down the black button which next to the motor to open, press the manual operation switch (up), after a few air pressure, press the manual operation switch (down), turn off the motor, connected to tubing. (The pressure should not exceed 63Mpa when air pressure, in order to avoid damage)2. Open the motor after the pump connect with the equipment, and placed the operation valve in pressurized position after the motor rotates 1-2 minutes, this moment the hydraulic oil come into the cylinder to perform the work, and the output of the hydraulic oil will increases with the load on their own booster until 63Mpa.3. The oil pump regular working temperature between 10℃~50℃,when find the oil temperature≥70 ℃ should stop using after continuous working under high pressure, let it self-cooling before use.4. The pressure of the relief valve and safety valve have been set before the pump leave the factory, the user can not arbitrarily increase the pressure,could only reduce it according to the actual working pressure, that can improve the life of the pump station.5. The motor must have reliable grounding.Package Included:1 X Electric Driven Hydraulic Pump2 X Oil Hose(1.8M)2 X Quick Connector

• 【High Efficiency】This electric hydraulic pump is equipped with a single-phase asynchronous motor, 750W, with aluminum shell is energy efficient, powerful, and durable.
• 【Pressure Gauge】This electric gas pump's air hydraulic pump has a precise pressure gauge, resistant to shock, helping to observe the pressure when the pump is working at any time. From 7Mpa to 70Mpa, you can try slowly and choose the right working pressure you need.
• 【Large Capacity】 The hydraulic pump omes with a hydraulic pump tank, 7l/1.8gal capacity, the hydraulic power pack is efficient. A visible window for monitoring the inside.The pump uses the 15 - 46 anti-wear hydraulic oil.It features compact size, lightweight, simple structure, and ease of use.

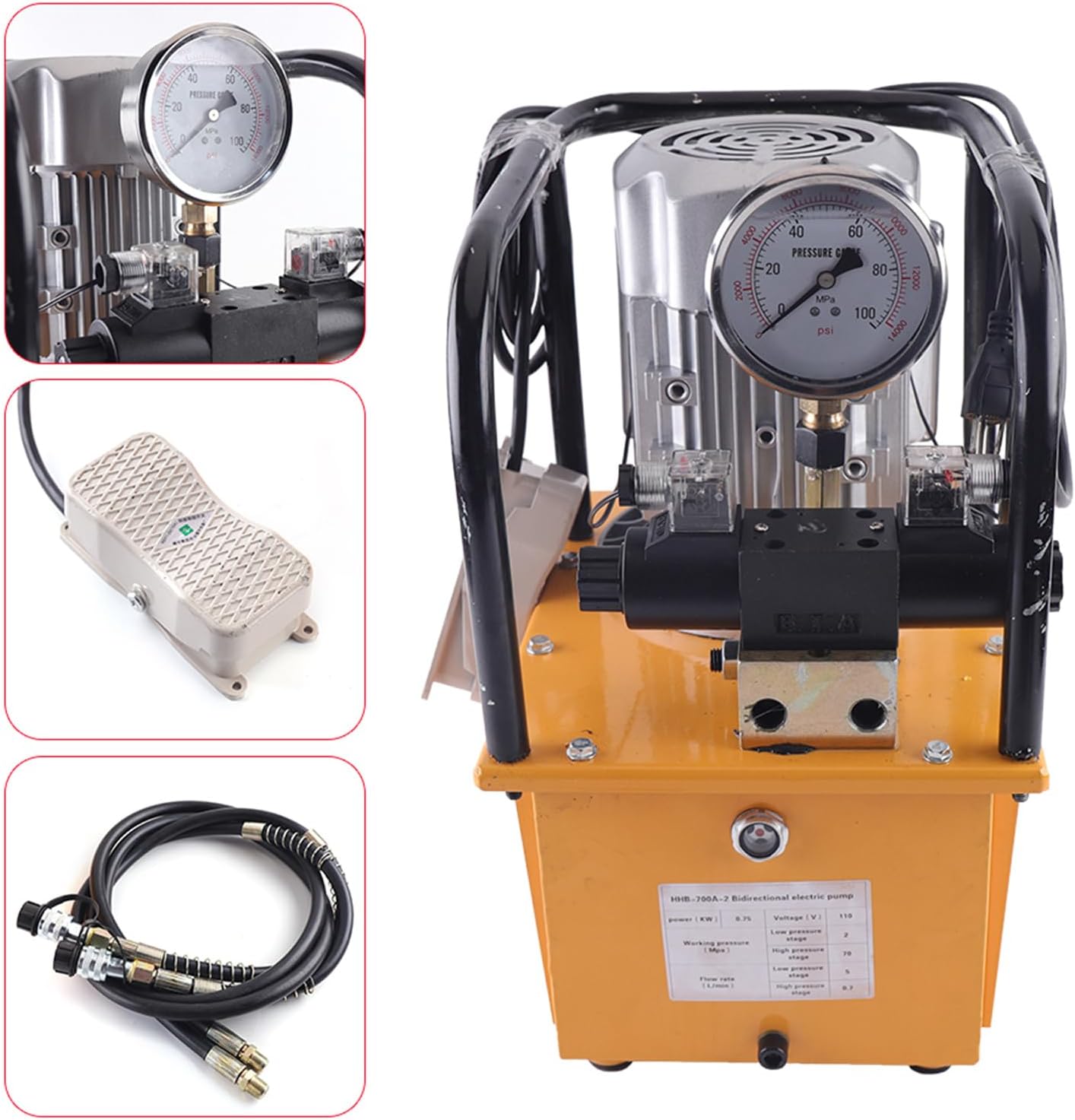

• 【Good Performance】The pump's double pipes manage this double-acting hydraulic gear pump by the solenoid valve.The high-pressure oil pipe is of high quality and durability.Control two with double pipes. Double-acting, solenoid valveManual switch and pedal switch.
• 【Wide Application】The electric drum pump's manual hydraulic pump can be used for a variety of hydraulic equipment, working on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.Punching machine, bending machine, Jack split hydraulic
