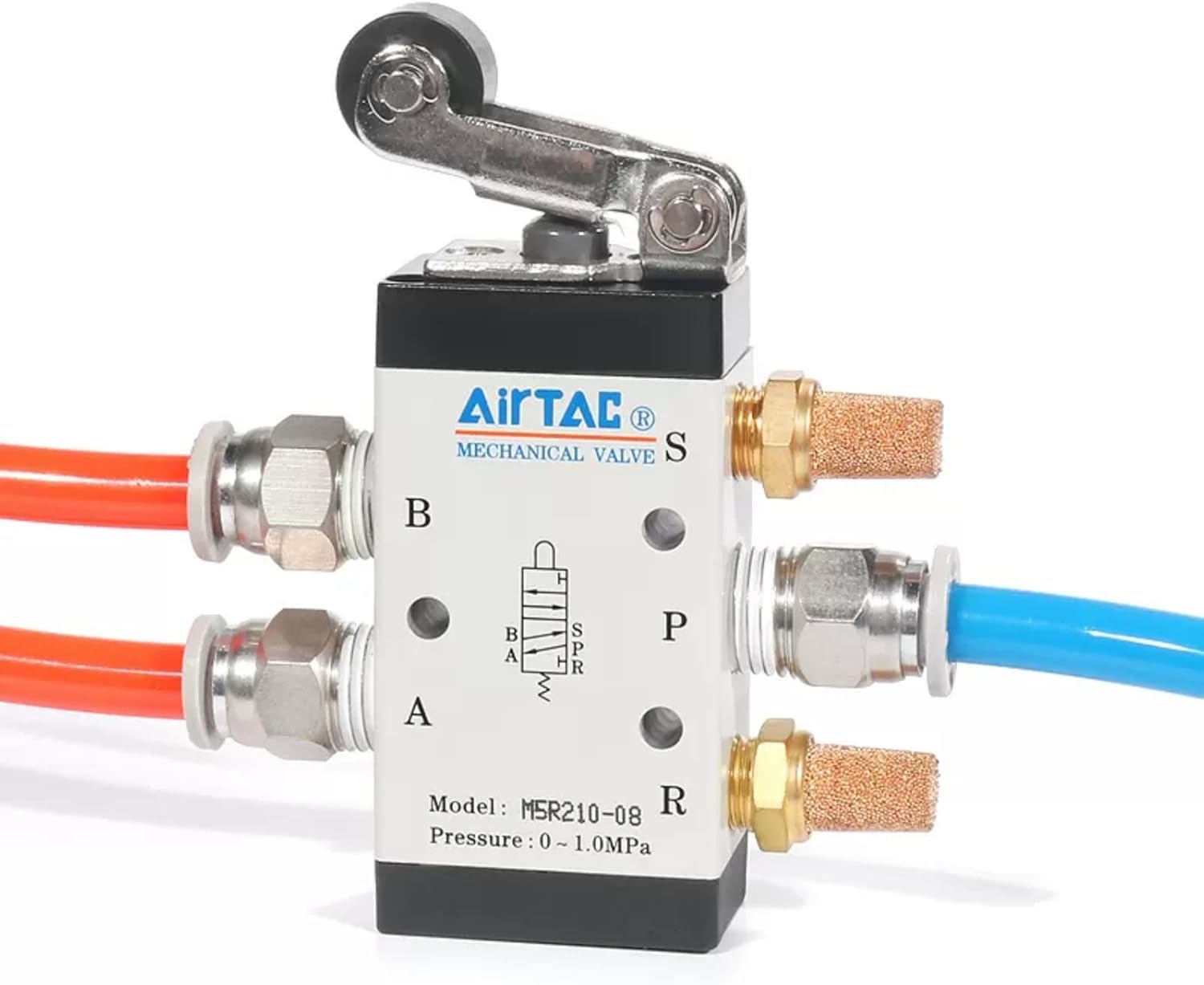

Control valve 5/2 Way AirTac M5R210-08 1/4'' PT Pneumatic Air Mechanical Roller Single External Direct Acting Type
Product details
| Management number | 211104091 | Release Date | 2026/04/04 | List Price | $13.20 | Model Number | 211104091 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1. Body and panel installation 2.Pay attention to the reversing stroke. The reversing stroke can not surpass its stroke stipulated in stroke control table when the direction-change of the valve is forced by any external forces, otherwise it will cause the damage of the valve.
- Model：M5R210-08 Product Size:3.8 x 1.4x 0.86 Inches Weight :0.4lb
- Working temperature: -20-70℃ Material: Aluminum Alloy
- Fluid ： Air Port size：PT 1/4" Vent Silencer：PT1/8''
- Pressure range:0~145Psi(0-1MPa) Proof pressure:1.5MPa(215psi)
| Size | M5R210 08 1/4 PT 5/2 Way |
|---|---|
| Brand Name | Airvexalon |
| Unit Count | 1.0 Count |
| Item Weight | 0.4 Pounds |
| Manufacturer | Airvexalon |
| Model Number | M5R210 08 |
| Material Type | Aluminum |
| Number of Ports | 5 |
| Maximum Pressure | 145 Pound per Square Inch |
| Included Components | 1 Control valve, 3 connector, 2 Silencer |
| Inlet Connection Size | 1/4 Inches |
| Inlet Connection Type | PT thread |
| Outlet Connection Size | 1/4 Inches |
| Outlet Connection Type | PT thread |
