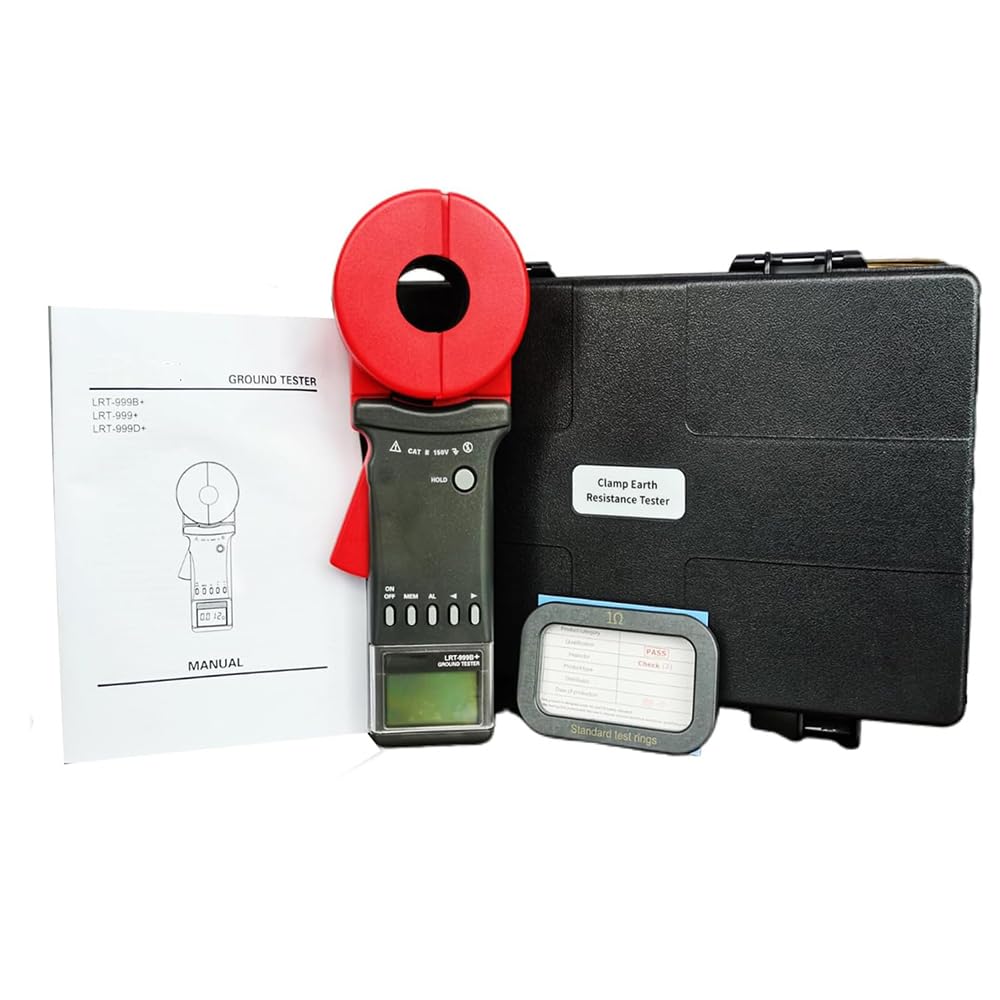

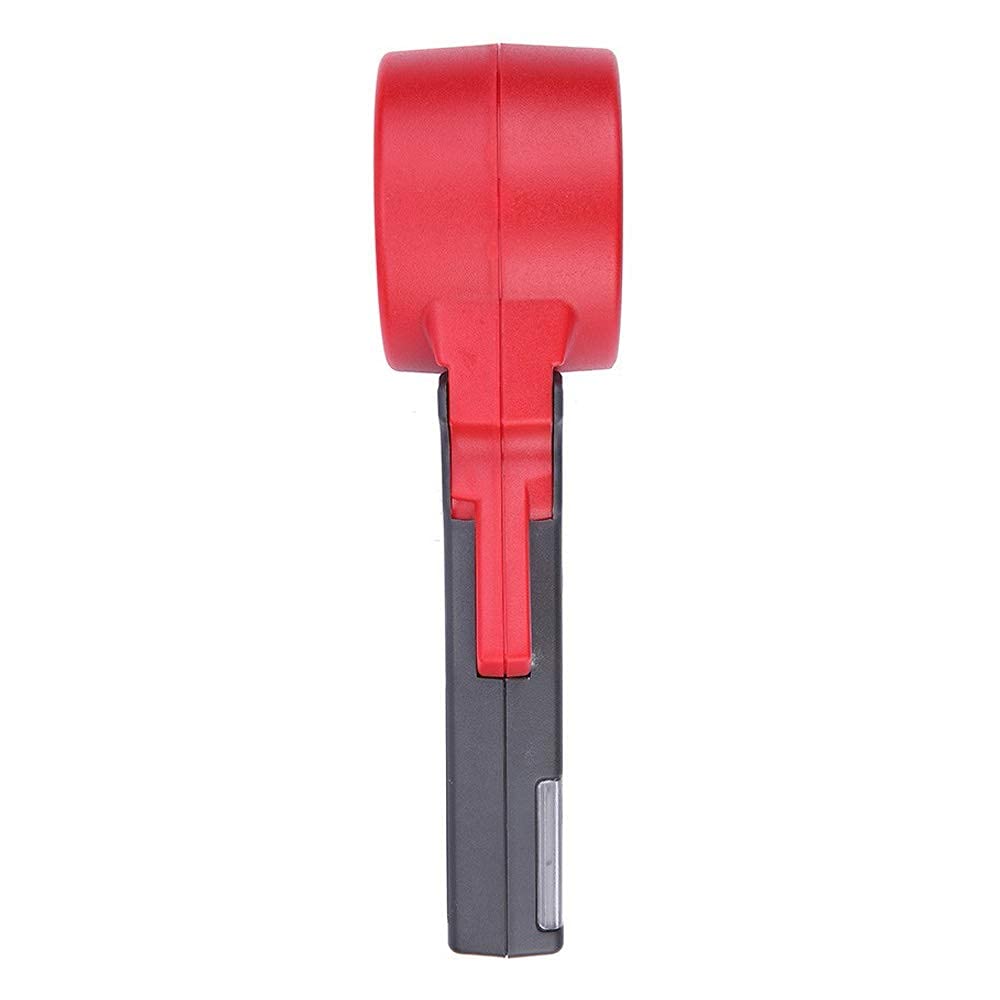

Digital Clamp Ground Earth Resistance Tester Meter Clamp Meter with Measuring Range 0.01 to 120 Data Memory 99 Sets

Application: ☀☀ Clamp Earth Resistance Tester can measure the ground fault and applied to the occasions that cannot be measured by traditional methods, and it is widely used for the earth resistance measurement of various equipment. Specifications: ☀Function: Ground resistance test, Loop resistance test ☀Clamp Size: Φ32mm ☀LCD Screen: 4 Digits LCD display, Screen L×W: 47mm×28.5mm ☀Resistance Range: 0.010Ω~200Ω ☀Resistance Resolution:0.001Ω ☀Highest Resistance Accuracy:±1%±0.01Ω ☀Data memory:99 Sets ☀Auto Power-off: 5 minutes after Boot up ☀Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours ☀Working Temperature and Humidity: -20℃-55℃;20%RH-80%RH ☀Storage Temperature and Humidity: -20℃~60℃;90%RH ☀Alarm Threshold Setting Range:Resistance: 1-199Ω ☀Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold. ☀Interference Signal Recognition:“Beep-beep-beep” tone, NOISE symbol blinking ☀Protection Level: Dual Insulation ☀Structural Feature: Clamp CT ☀Shifting: Automatic shifting ☀External magnetic field: <40A/m ☀External electrical field: <1V/m ☀Single measurement time: 0.5 second ☀Resistance measurement frequency: >1KHz ☀Measured current frequency: 50/60Hz Automatic measurement ☀Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V ☀Memory Full Indication: MEM symbol blinks when all 99 sets memory is full ☀Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A” ☀Weight: 1120g ☀Clamp Dimension: L×W×T: 260mm×90mm×66mm ☀Power Supply: 4 PCS of AA alkaline batteries（Battery not included in the package） ☀Standard Accessories: Meter: 1; test loop: 1; meter box: 1 ☀Optional Accessories: RS232 interface

• ☀☀(1)Resistance Range:0.01-200Ω.Highest Resistance Accuracy:±1%±0.01Ω

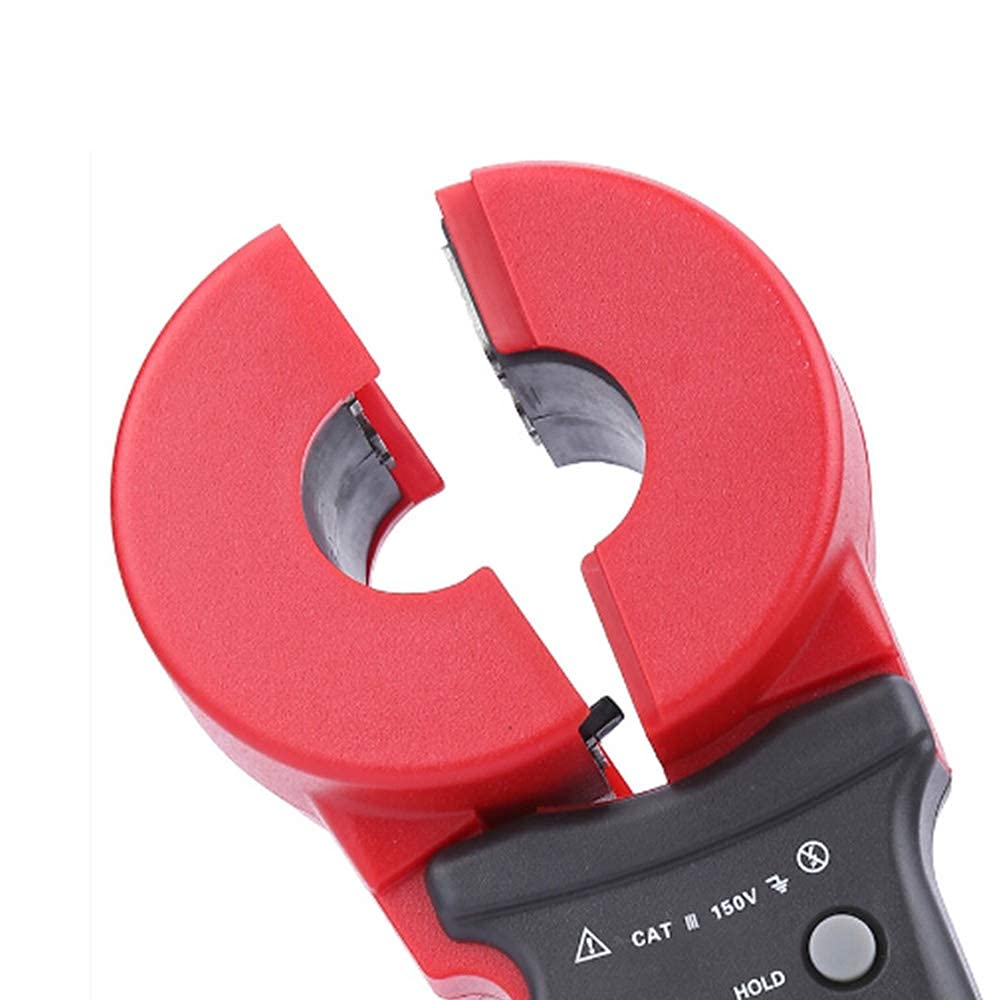

• ☀☀(2)Structural Feature：Clamp CT,and can measure the ground fault which can not be measured by traditional method.
• ☀☀(3)Grounding and loop resistance measurement, more reliable quality.
• ☀☀(4)Shifting：Automatic shifting.Auto Power-off：5 minutes after boot up.
• ☀☀(5)Alarm sound and light function,Data memory:99 Sets
