H50tr -55~120℃ Dc 12v 24v Digital Temperature Controller Red/Blue LED Display Thermostat with Heat/Cooling Control Instrument

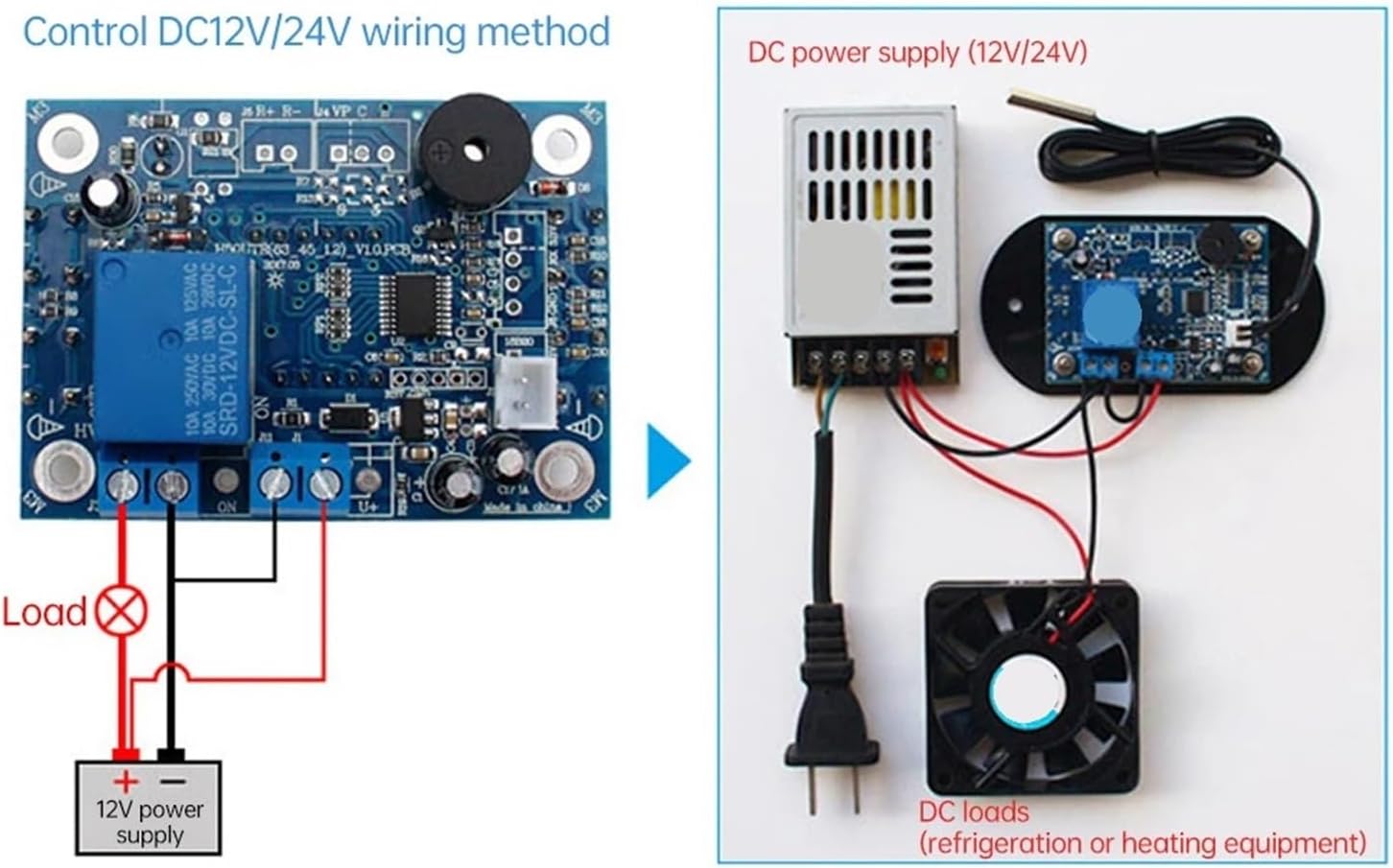

H50TR -55~120 DC 12V 24V Digital Temperature Controller Red/Blue LED Display Thermostat With Heat/Cooling Control InstrumentFeatures:1. Made of materials, resistant to high temperatures, not easily deformed, and durable.2. Using a single-chip microcomputer control system and a high-precision temperature control probe, the temperature control performance and accuracy are outstanding.3. Simple control panel, wide temperature control range, adjustable heating and cooling modes, and simple .4. It can be installed and used directly or embedded on the panel of industrial control equipment, which is convenient and fast.5. Widely used in incubation fields, equipment chassis, air conditioning systems, temperature control protection, and other fields.Specifications:Temperature measurement range: -55~120Accuracy: 0.1Measurement input: NTC10K L=1 meter waterproof probeInput power supply: DC 12/24VOutput type: relay output (output switch)Output capacity: 10ADisplay color: red, blue (optional)Opening size: 63.5*45.5mmProduct size: 100*52mmInstall product steps:1. Fix the motherboard and plastic panel with spacers and tighten the nuts2. Connect the power supply and load control lines according to the wiring diagram3. Make holes in the chassis according to the drawing, then embed the thermostat into the locking screws and attach the mask4. Put the temperature control probe into the place where the temperature needs to be controlled, and set the temperature as neededPackage Included:Thermostat module*1Face patch*1Panel*1Sensing line*1Screw pack*1Is Smart Device : NoCable Length : 1mOrigin : Mainland ChinaUse : HouseholdDisplay Size : 1.9 Inches & UnderTemperature measurement range : -55~120Accuracy : 0.1Measurement input : NTC10K waterproof probeInput power supply : DC 12/24VOutput type : relay output (output switch)Output capacity : 10ADisplay color : red, blue (optional)Opening size : 63.5*45.5mmProduct size : 100*52mm

• Robust Output Capacity:With a 10A output capacity, the H50TR thermostat handles a variety of heating and cooling loads.
• Precise Temperature Control:The H50TR thermostat features a high-precision temperature control probe for accurate readings (0.1℃).
• High Temperature Resistance:Crafted from robust materials, the H50TR thermostat withstands high temps ( Gaqqee) with durability.
• Versatile Temperature Control:The H50TR thermostat offers a broad temperature measurement range (-55~120℃) for diverse applications.
• Easy Installation:The H50TR thermostat is designed for easy installation on panels or embedded in control equipment.
