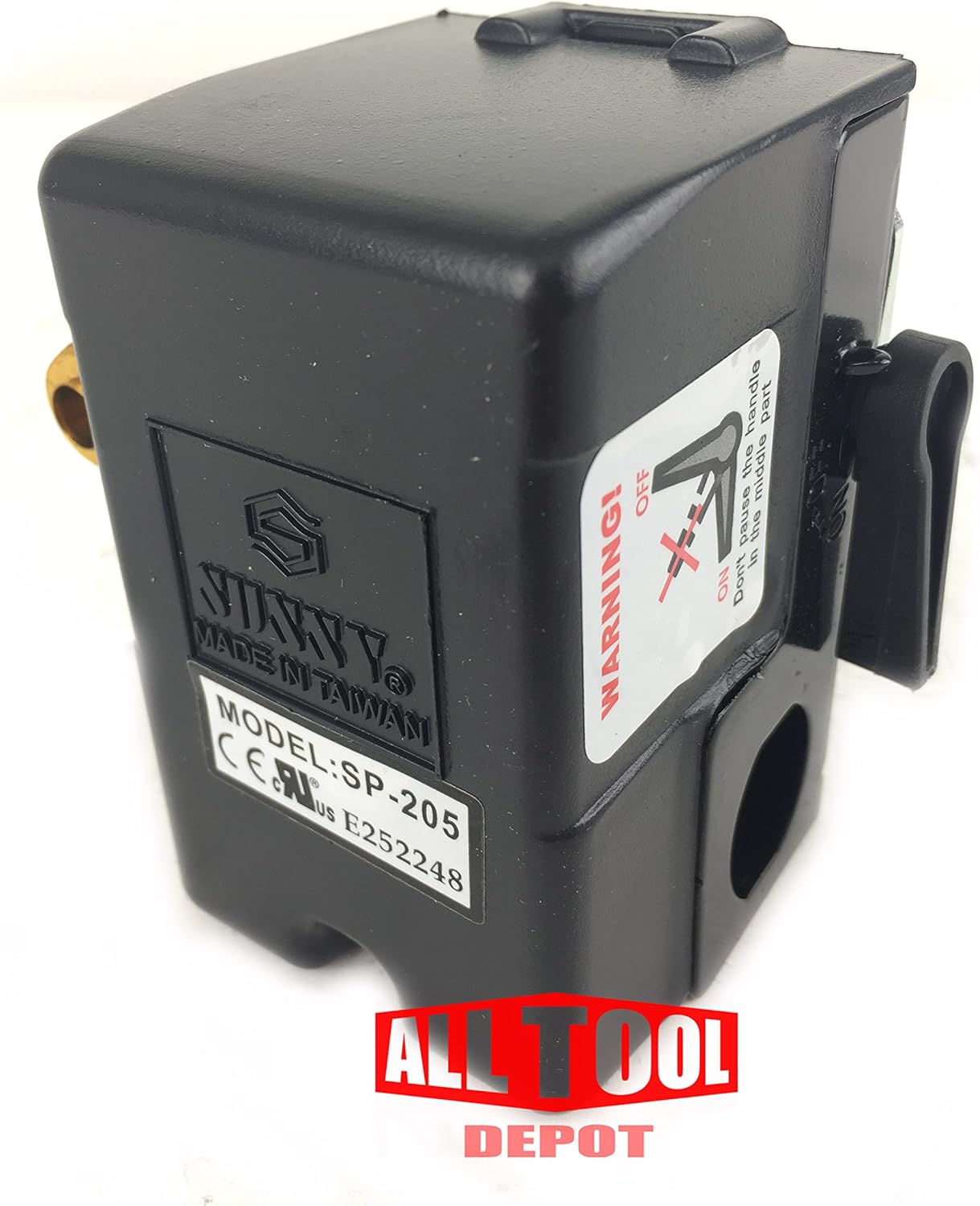

Heavy Duty Air Pressure Switch Sunny L1, 1 port, 95-125 PSI, 25 Amp, Auto/Off Cut-Out Lever
Product details
| Management number | 222829717 | Release Date | 2026/05/09 | List Price | $8.80 | Model Number | 222829717 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Sunny SU-L1 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 psi. The switch has a 1/4" NPSF internal fluid connection. The adjustable cut-out range is 60-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections. The maintained manual cut-out lever has auto and off positions.
- Heavy Duty SUNNY 95-125 PSI air compressor pressure switch, Single Port.
- MAX PRESSURE: 200 PSI MIN CLOSE: 60 PSI, 25AMP
- DIFFERENTIAL: 28-40 PSI
- 1/4" COMPRESSION UNLOADER VALVE CONNECTION, 1/4" FEMALE NPT TANK CONNECTION.
- 1PH: 115v,230v; 3PH: 230V,575V; DC: 32V,115V,230V
| ASIN | B09ZH1BM7W |
|---|---|
| Color | Black |
| Model | SU-L1_a |
| Wattage | 5750 watts |
| Terminal | Screw |
| Brand Name | ALL Tool Depot |
| Unit Count | 1.0 Count |
| Part Number | SU-L1_a |
| Switch Type | Pressure Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | Pressure |
| Manufacturer | All Tool Depot |
| Actuator Type | Rotary |
| Material Type | Brass, Copper |
| Mounting Type | Panel Mount |
| Connector Type | Screws |
| Current Rating | 25 Amps |
| Operation Mode | ON-OFF |
| Operating Voltage | 230 Volts |
| Specification Met | ETL |
| Compatible Devices | Air Compressors (various brands and models, 95-125 PSI, compatible port and connection type) |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
| Global Trade Identification Number | 00197809004589 |
