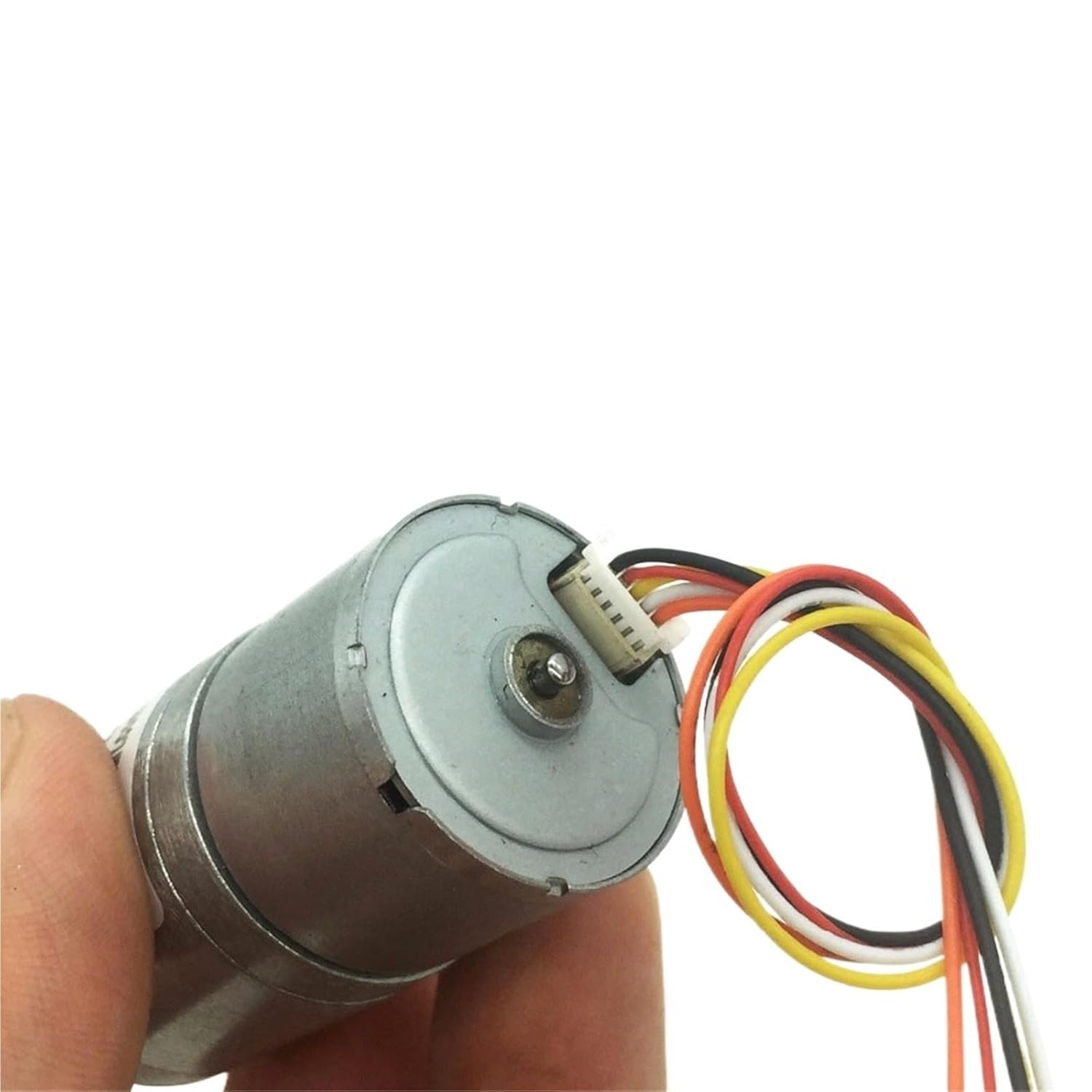

JGA25-2418 Brushless DC Gear Motor 12V 24V High Speed 8.5-1977RPM Low Noise Reversible for Toy Car(24V 245rpm)
Product details
| Management number | 220248092 | Release Date | 2026/05/03 | List Price | $18.83 | Model Number | 220248092 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MotorsPIN:1.PWM Speed (Input 1 ~ 50kHz PWM signal, the duty cycle can be adjusted by adjusting the motor speed)2. Power negative3. Reversible (when float CCW, short to ground CW)4. Feedback (n = 60 * F / P), F: output frequency feedback, P: Motor poles: 6 pairs5. The power supply positiveWiring Method:Black line & White linepower supply negative Red linepower supply positive White LineLine Disconnect Brakes immediatelyOrange LineCW / CCW commutation line, the orange line to the black line change turned.Yellow Line:FG output signal line Hall signalWhite line:PWM pulse width speed line can be connected to 0-5V PWM converter==========Hign-concerned Chemical : None<;18.65 : 0.03-16.5kg.cm, according to the speedUsage : BOAT,Car,Fan,Home ApplianceModel Number : 25GA2418Continuous Current(A) : 76-168mAConstruction : Permanent MagnetType : Gear MotorProtect Feature : Totally EnclosedCommutation : BrushlessEfficiency : IE 1Origin : Mainland Certification : CCC,Output Voltage : 0.6-2.2W Support : Customizable
- Motors
- JGA25-2418 Brushless DC Gear Motor 12V 24V High Speed 8.5-1977RPM Low Noise Reversible For Toy Car
| Model | OYFUFFAER |
|---|---|
| Brand Name | OYFUFFAER |
| Model Name | OYFUFFAER |
| Part Number | OYFUFFAER |
| Manufacturer | OYFUFFAER |
