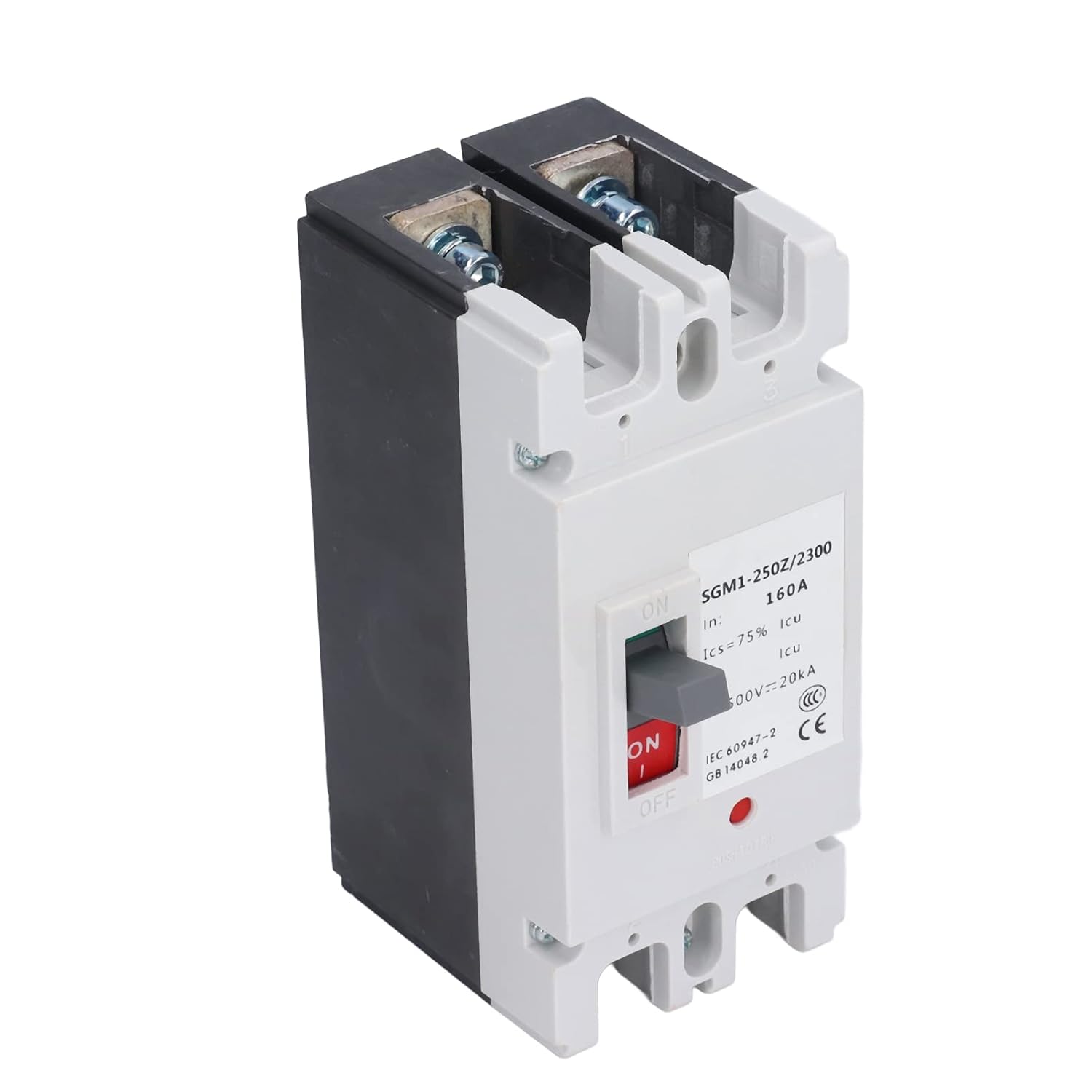

Mini Circuit Breaker, 2P 500V 160A DC Disconnect Switch Solar PV System Isolator Overcurrent Moulded Case for Solar Photovoltaic Systems SGM1-250Z 2300
Product details
| Management number | 221118740 | Release Date | 2026/05/03 | List Price | $17.12 | Model Number | 221118740 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description:1. Function: This is a circuit breaker switch with function, short circuit, overload, emergency manual power off.2.Application: This circuit breaker is mainly used for DC power lines, such as photovoltaic solar energy, wind power, hydropower, automobiles and any DC power supply equipment.3.Wide Uses: Circuit breakers are widely used in low voltage DC power and distribution applications such as photovoltaic power generation systems, wind power generation systems, rooftop building power generation systems.4.Professional Applications: This is a great circuit breaker used to the circuit from damage caused by overcurrent caused by overload or short circuit.5.Breaking Capacity: The breaking capacity of the circuit breaker is up to 20kA, and can be used for rated voltage: DC 12V-500V (including normal battery circuit voltage: 12V, 24V, 36V, 48V, 54V, 72V, 96V, etc.) The maximum current can reach 160A.SpecificationItem Type: DC Circuit BreakerModel: SGM1-250Z/2300Material: Thermosetting PlasticRated Current: 160ARated Voltage (Ue): DC 500VBreaking Capacity: 20KARecommended Installation Method (2P): Vertical, Top in and Bottom out WiringHow to Use1. Open the package and take out2. Install the circuit breaker in the distribution box3. Install wires on the circuit breaker and usePackage List1 x Circuit Breaker
- 【 Function】: This is a circuit breaker switch with function, short circuit, overload, emergency manual power off.
- 【Application】: This circuit breaker is mainly used for DC power lines, such as photovoltaic solar energy, wind power, hydropower, automobiles and any DC power supply equipment.
- 【Wide Uses】: Circuit breakers are widely used in low voltage DC power and distribution applications such as photovoltaic power generation systems, wind power generation systems, rooftop building power generation systems.
- 【Professional Applications】: This is a great circuit breaker used to the circuit from damage caused by overcurrent caused by overload or short circuit.
- 【Breaking Capacity】: The breaking capacity of the circuit breaker is up to 20kA, and can be used for rated voltage: DC 12V-500V (including normal battery circuit voltage: 12V, 24V, 36V, 48V, 54V, 72V, 96V, etc.) The maximum current can reach 160A.
| Model | HURRISEht4gek7wnv |
|---|---|
| Voltage | 12 Volts, 500 Volts |
| Brand Name | HURRISE |
| Unit Count | 1.0 Count |
| Part Number | HURRISEht4gek7wnv |
| Manufacturer | HURRISE |
| Mounting Type | Rack Mount |
| Current Rating | 160 Amps |
| Item Type Name | Circuit Breakers |
| Number of Poles | 2 |
| Circuit Breaker Type | Standard |
