Normally Closed and Open DC-AC SSR NC and NO Single Phase Solid State Relay DA (Size : DC-AC 25A)
Product details
| Management number | 211056932 | Release Date | 2026/04/04 | List Price | $18.56 | Model Number | 211056932 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

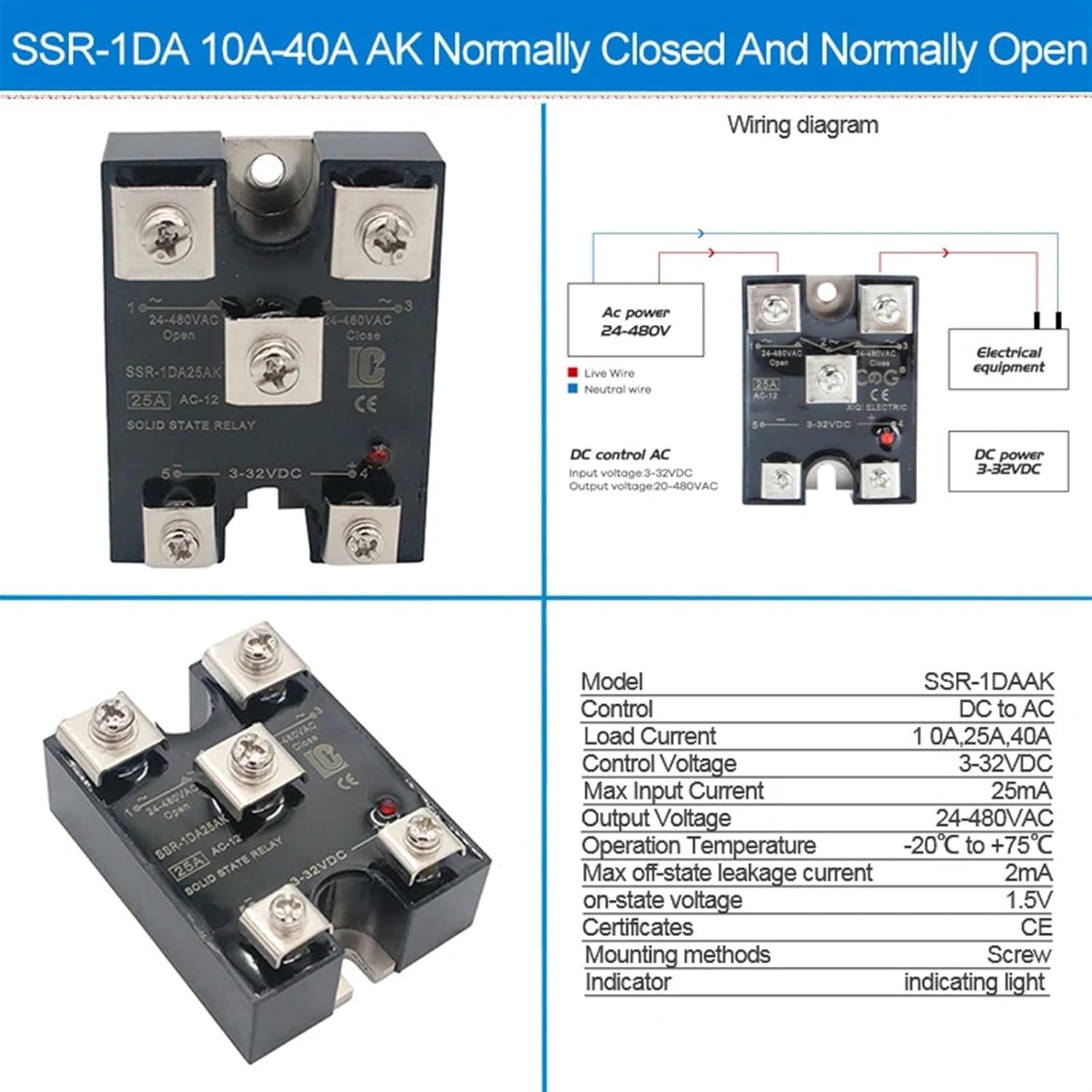

RelaysLCTC NC&NO single phase solid state relay DC to AC 10DA25DA40DAModel SSR-1DA25AKControl DC to ACLoad Current 10A,25A,40AControl Voltage 3-32VDCMax Input Current 25mAOutput Voltage 24-480VACOperation Temperature -20 to +75Max off-state leakage current2mAon-state voltage 1.5VCertificates CESTEP 1: Choose a correct control ModeAA- AC Control ACDA- DC Control ACDD- DC Control DCVA-Control and AdjustSTEP 2: Choose a correct typeCurrent of Equipment/Ratio = Current of SSRPS: The Ratio depend on the kind of your loading equipment.Resistive load :70%, Inductive load:20%,Capacitive load:10%.STEP 3: Choose a suitable heat sink.During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)
- Relays
- Normally Closed and Open DC-AC SSR NC and NO Single Phase Solid State Relay DA
| Model | CONTIA |
|---|---|
| Brand Name | CONTIA |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Part Number | CONTIA |
| Coil Voltage | 32 Volts |
| Manufacturer | CONTIA |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 25 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 25 |
| Specification Met | CE |
| Contact Current Rating | 25 Amps |
| Maximum Switching Current | 40 Amps |
