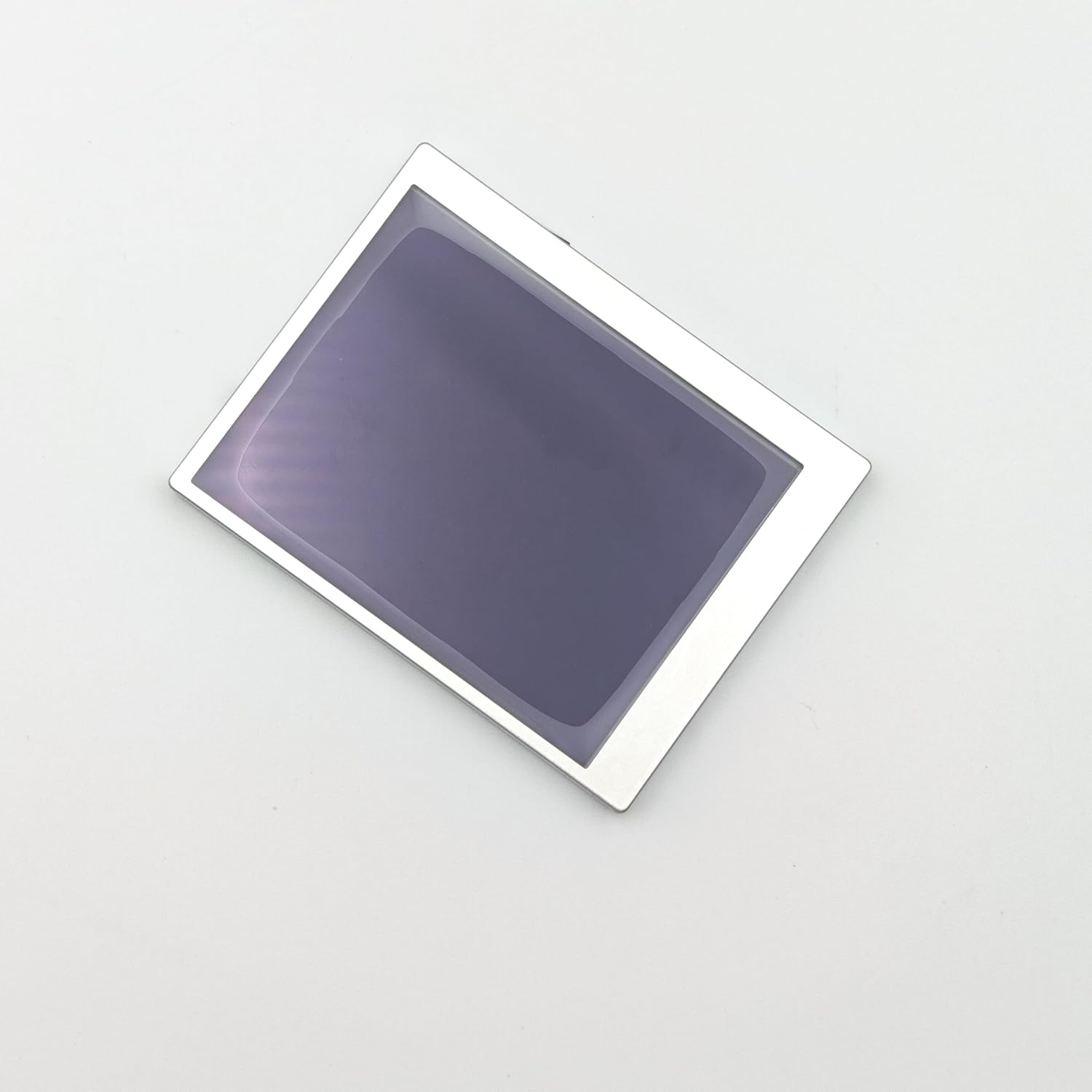

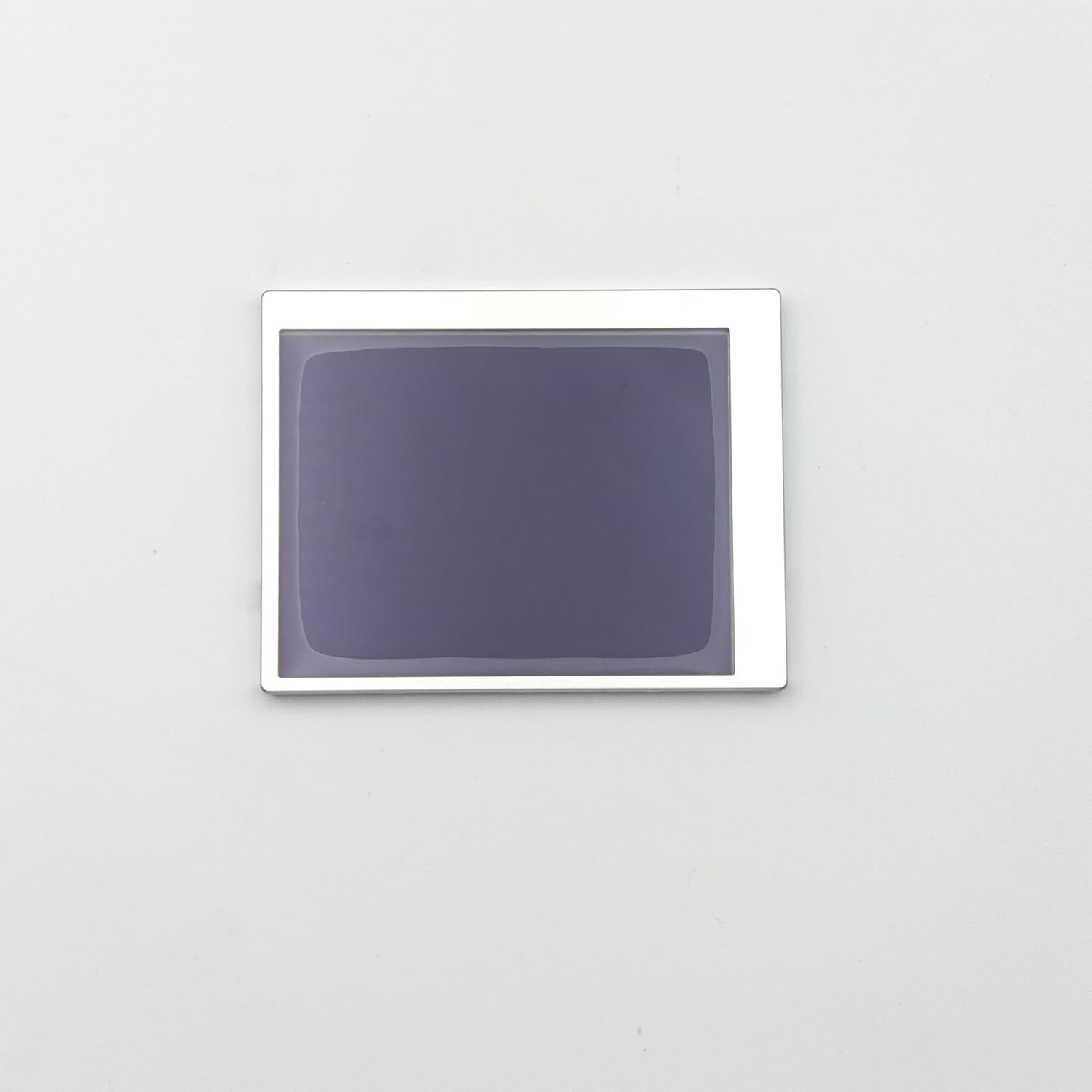

SP10Q010 3.8 Inch 320×240 FSTN-LCD Module Replacement for Industrial Display Panel with WLED Backlight
Product details
| Management number | 221068438 | Release Date | 2026/05/03 | List Price | $84.00 | Model Number | 221068438 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The SP10Q010 is a 3.8 inch diagonal FSTN-LCD display panel. It features 320×240 QVGA resolution with high contrast (20:1 Typ.) and brightness (110 cd/m² Typ.), making it suitable for industrial applications requiring reliable monochrome display performance. This module includes a WLED backlight system but does NOT include a backlight driver. An external LED driver is required. Technical Specifications: Parameter - Value Model - SP10Q010 Screen Size - 3.8" diagonal Resolution - 320 × 240 (QVGA) Aspect Ratio - 4:3 Display Type - FSTN-LCD, STN Monochrome, Transmissive Contrast Ratio - 20:1 (Typ.) Brightness - 110 cd/m² (Typ.) Viewing Angle - 80° (Typ.) (CR≥2) Best View Direction - 6 o'clock Response Time - 150/350 ms (Typ.) (Tr/Td) Active Area - 76.79(W) × 57.59(H) mm This product is sold as a repair component. Controller board, cables, and backlight driver are NOT included unless explicitly stated
- SP10Q010 3.8” FSTN-LCD display panel – 320×240 (QVGA) resolution, 4:3 aspect ratio, ideal for portable industrial devices and handheld equipment
- Industrial wide temperature range – Operating -20°C to +70°C, storage -30°C to +80°C
- High brightness WLED backlight – 110 cd/m² (Typ.); NOTE: backlight driver is NOT included (external driver required)
- Mechanical dimensions – Active area: 76.79×57.59 mm; outline: 94.7×73.3×6 mm; compact size for space-constrained designs
- Replacement for SP10Q010 – Compatible with industrial HMI, medical devices, test equipment, and portable instruments
| Brand | GOOD LNVSHOP |
|---|---|
| Color | Monochrome |
| Model Name | SP10Q010 |
| Resolution | 320×240 |
| Screen Size | 3.8 Inches |
| Aspect Ratio | 4:3 |
| Manufacturer | YINXIAN |
| Model Number | SP10Q010 |
| Refresh Rate | 75 Hz |
| Response Time | 150 Milliseconds |
| Screen Finish | Glossy |
| Additional Features | 3.8" diagonal FSTN-LCD display panel |
| Warranty Description | 90 days warranty |
| Item Dimensions D x W x H | 0.24"D x 3.73"W x 2.89"H |
| Display Resolution Maximum | 320×240 Pixels |
