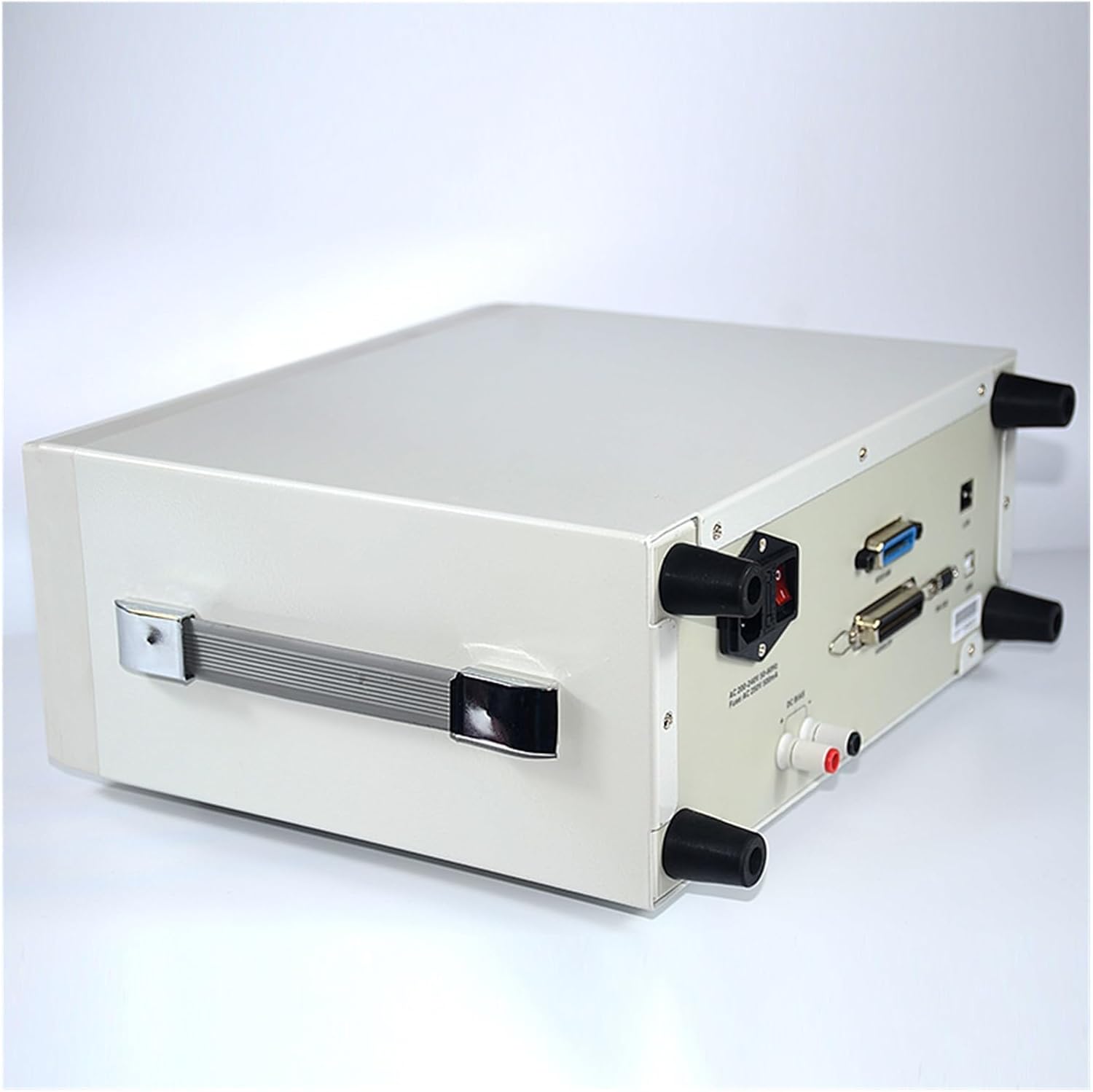

Tester LCR Benchtop Digital Bridge 100kHz-1MHZ Desktop LCR Tester Meter Capacitance Resistance Impedance Inductance Measure(ET3501-100KHz)

Main technical indexes:ModelET3501ET3502ET3503ET3505ET3510Test signal frequencyrange10Hz-100kHz10Hz-200kHz10Hz-300kHz10Hz-500kHz10Hz-1MHzFrequency resolution ,accuracyResolution: 1mHz,Accuracy: 0.01%Test parametersCp-D,Cp-Q,Cp-G,Cp-Rp,Cs-D,Cs-Q,Cs-Rs,Lp-D,Lp-Q,Lp-G,Lp-Rp,Ls-D,Ls-Q,Ls-Rs,Rs-Xs,|Z|-r,|Z|-d,|Y|-r,|Y|-d,G-BMeasuring display speedFast: 50times/s(20ms ),Medium:10times/s(100ms ),Slow:1.25times/s(800ms )Custom measuringspeedBetween 0.5times/s-200times/s,Can be setLCR parameter rangeCp,Cs: 0.001000pF~99.9999FLp,Ls: 0.001000nH~99.9999kHRp,Rs,|Z|,Xs: 0.001000m~999.999MG,B,|Y|: 0.001000S~999.999kSr: ±0.000001rad~3.14159radd: ±0.000001deg~179.9999degD: ±0.000001~9.99999Q: ±0.001~99999.9Test signal voltage range0.01-2Vrms,1mV step, continuous adjustableVoltage resolution,accuracyResolution: 1mV,accuracy:5%+5mVTest signal current range100Arms-20mArmsCurrent resolution,accuracyResolution :10A,accuracy:5%+50ADC bias voltage sourceInternal: -2V-+2V voltage bias,-20mA-+20mA current biasExternal: -60V-+60V voltage biasInternal resistance ofsignal source30 Ohm or 100 Ohm, selectableBasic accuracy0.05%Display resolution6 1/2 digitComparator9 groups of qualified setting, one group of unqualified setting, one group of auxiliary settingTriggered modeInternal,External,manual, busMathematicaloperationsDelta(absolute value),Delta%(percentage),Direct readingCalibration functionSelf-calibration, open circuit,short circuit,load,100 groups of customised frequency pointList scanning10-point list scanning testingStorage deviceInternal/USB storage deviceInterfaceLAN,RS232,USB Host,USB Device,HandlerGeneral technical specifications<;20W

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• External Interfaces: One is equipped with external interfaces for connection and data transfer to other equipment or computers for more extensive data processing and analysis.
