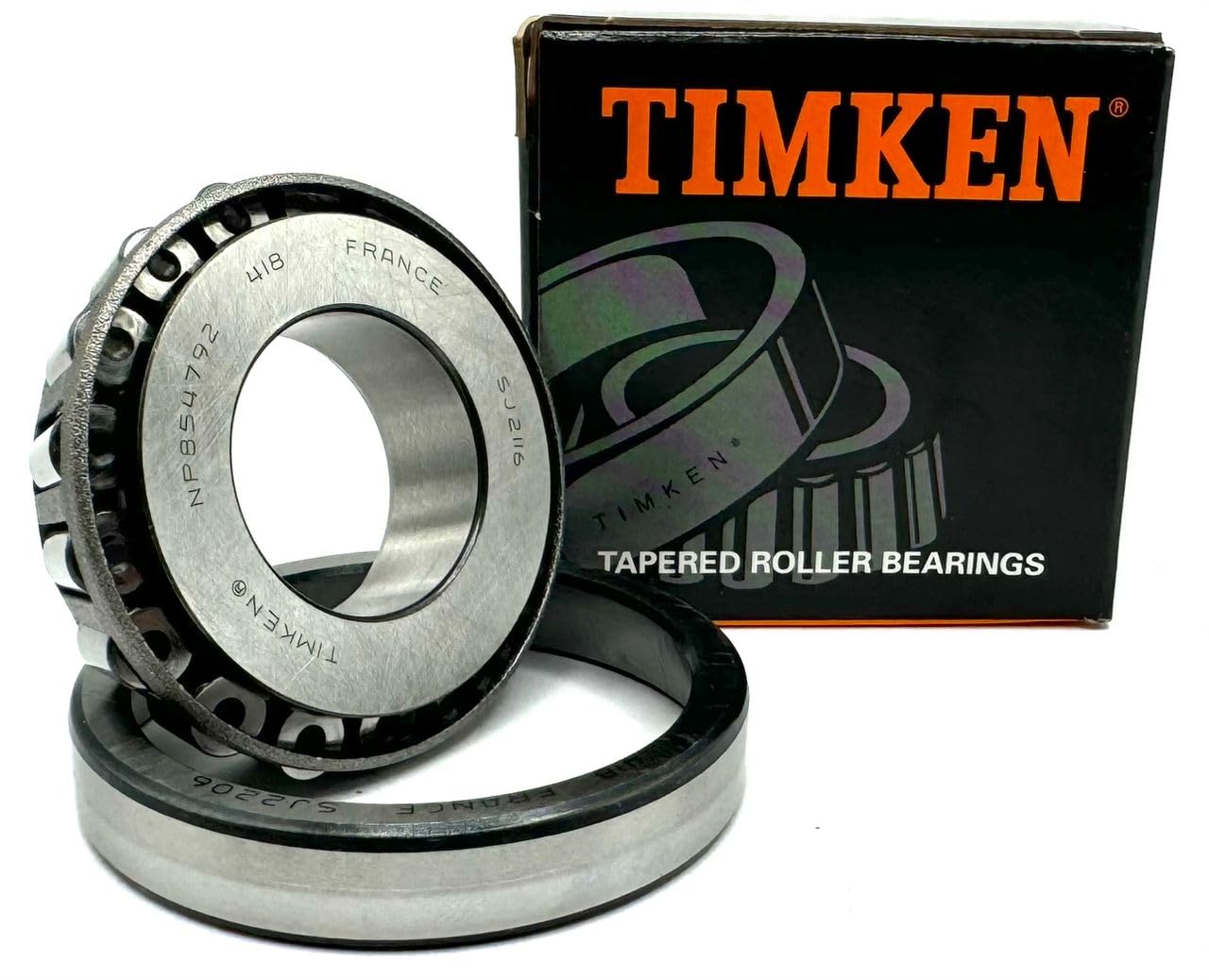

TIMKEN NP854792 NP430273 Tapered Roller Bearing SET660 25X55X14 MM

BRAND: TIMKEN ID: NP854792/NP430273 MADE IN: FRANCE DESCRIPTION: Category Tapered Roller Bearing Single Row WEIGHT AND DIMENSIONS Inner (d) MM25,00 Outer (D) MM55,00 Width (B) MM14,00 Inner (d) Inch0.9843 Outer (D) Inch2.1654 Width (B) Inch0.5512 Weight (kg)0.15 PRODUCT PROPERTIES PRECISION STANDARD PRECISION Product description THE NP854792/NP430273 TIMKEN IS A SINGLE-ROW TAPERED ROLLER BEARING. THIS BEARING TYPE GETS ITS NAME FROM THE TAPERED ROLLERS BETWEEN THE INNER AND OUTER RINGS. THE RACEWAYS ARE CONICAL. THIS DESIGN ALLOWS THESE VERSATILE BEARINGS TO ACCOMMODATE COMBINED LOADS. THEY SUPPORT HIGH RADIAL AND AXIAL LOADS (IN ONE DIRECTION). THE GREATER THE CONTACT ANGLE, THE GREATER THE AXIAL LOAD CAPACITY. THE NP854792/NP430273 TIMKEN IS EASY TO (DIS)ASSEMBLE AS IT IS A COMBINATION OF A CUP AND A CONE. THE CONE UNIT CONSISTS OF AN INNER RING WITH CAGE AND ROLLER SET. THE CUP IS THE OUTER RING. SINGLE-ROW TAPERED ROLLER BEARINGS HAVE AN OPEN DESIGN. BECAUSE OF THE INTERNAL CONSTRUCTION, THEY MUST BE MOUNTED IN MIRROR-IMAGE ARRANGEMENT TOGETHER WITH A SECOND TAPERED ROLLER BEARING. PAIRED BEARING SETS CAN ALSO BE APPLIED IN X, O, OR TANDEM ARRANGEMENTS. PACKAGE INCLUDES: ONE (1) TIMKEN NP854792/NP430273

• TIMKEN NP854792 NP430273 TAPERED ROLLER BEARING SET660 25X55X14 MM
