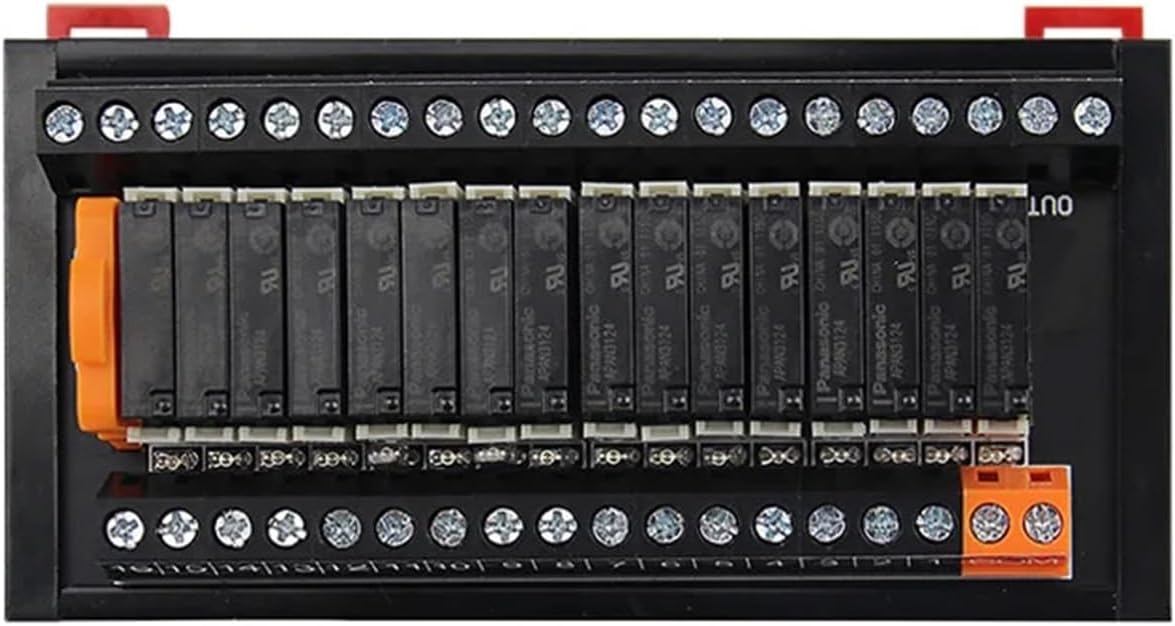

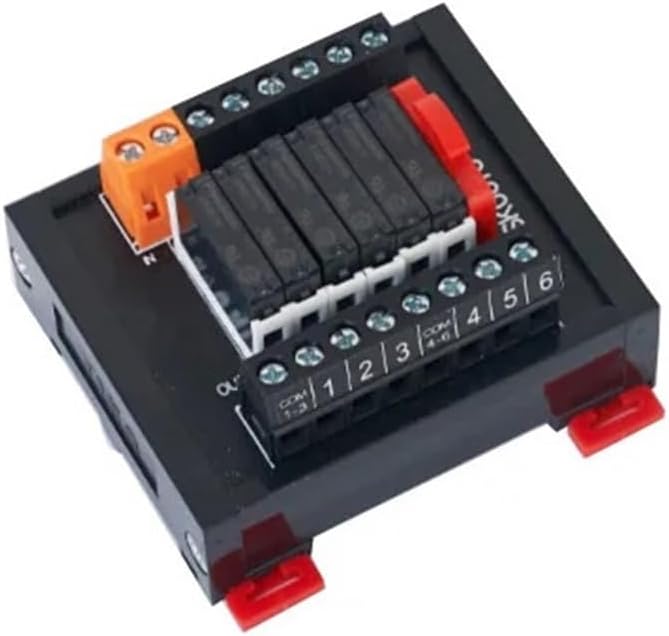

VARNOK PLC Signal Amplifier Board PLC Output Amplifier Board DIN Rail Relay Module Module Control Board 6/8/12/16 Road 5V12V24V NPN/PNP Universal(12V DC,SK1210)

DescriptionLarge capacity, high sensitivity, pluggableEasy to understand wiringSmall sizeDIN rail universalSpecificationOperating coilenterRated voltage: 5/12/24VDC optionalRated current: 7.5mACoil resistance: 320Action voltage: more70%Reset voltage: Following5%Maximum allowable voltage: 120%Rated power consumption: 180MWSwitch partOutput (electric shock specification)Contact structure: 1aResistant touch award (initial): 30mo (voltage drop through the DC6V 1A France)Rated control capacity (resistive load): 5A250V AC, 5A 30vDCMaximum allowable power: 1250VA, 150wMaximum allowable current: 5AMaximum allowable voltage: 250V AC; 110v DCMinimum applicable load: DC100mv 100uAPackage Included1 ×Module control board4-way6-way8-way10-way12-way16-way==========Power Source : DCTheory : Voltage relayContact Load : Low PowerVoltage : 220VOrigin : ChinaUse : General PurposeProtect Feature : Sealed

• 【Material】：Adopting high quality transistor, superior performance, stable and reliable quality, the output signal optocoupler isolation, strong anti-interference ability.
• 【Widely used】: The output can control high-power devices, light bulbs, LED strips, DC motors, miniature pumps, solenoid valves and so on.
• 【Principle】: Through optoelectronic isolation and amplification of weak control (only a few milliamps of current), the final output of higher power control, direct drive motors, contactors, solenoid valves and so on.
• 【Advantages】: Its response time can be as low as milliseconds and there is no limit to the number of switches. It can directly replace traditional relays, reducing maintenance time and cost.
• 【Features】: Optical isolation is used between the input and output stages, and the two stages are completely independent, which effectively avoids the instability caused by mutual interference of the system, and effectively
