VSDISPLAY 13.3" 1920x1200 Touch Panel 13.3 Inch LCD Screen 16:10 NV133WUM with USB-C Driver Board,As Extra Display/Replacement Panel
Product details
| Management number | 209108058 | Release Date | 2026/03/29 | List Price | $44.00 | Model Number | 209108058 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

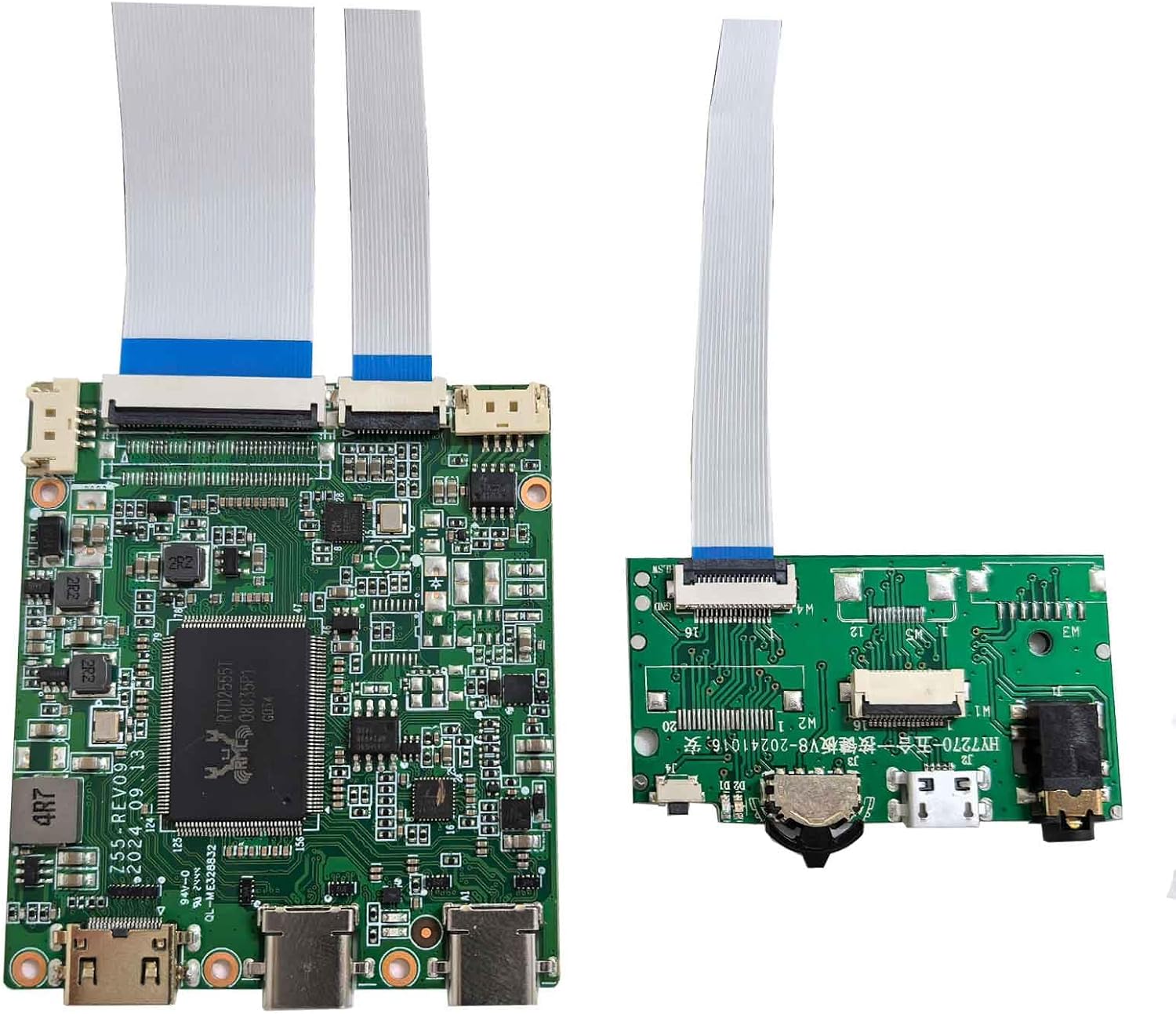

LCD Controller Board: USB C Control Board Work for 40Pin EDP LCD ScreenInput Power Adapter: USB-C connectorCome In Standby Model When Not Input SignalStandby Model <0.3WInput: USB-C Output: eDP USB (max 500mA)Audio Output: SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: English Chinese French Deutsch Italian Espanol Portugues Turkce PolskiNederlands Korean JapaneseBoard Size: 83mm x 58mm x 4mm13.3" NV133WUM 1920X1200 With Touch Panel LCD Screen:Display Mode AAS, Normally Black, TransmissiveResolution 1920(RGB)×1200Outline Size 291.74×189.53×5mm(H×V×D)Display Area 286.042×178.776(H×V)Brightness 250 cd/m² (Typ.)Contrast Ratio 800:1 (Typ.) (TM)Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface eDP (4 Lanes), Connector, 40pinsBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1×USB-C LCD Controller Board VS-RTD2556HC-V21× 13.3inch NV133WUM 1920X1200 IPS LCD With Capacitive Touch Panel1x USB Cable1× Keyboard With CableTips:All the products are tested before package and shipment,if any problem of product,please feel free to contact us
- 【13.3'' LCD Touchscreen】13.3 inch 1920x1200 LCD screen with USB-C controller board;Aspect ratio:16:10;Brightness:250 cd/m² (Typ.);Contrast ratio:800:1 (Typ.) (TM)
- 【 USB-C Board】For 40Pin EDP 13.3 in 1920x1200 LCD screen;Support R;Input:USB-C ;Output:eDP USB (max 500mA);Audio Output:speaker
- 【Easy to Use】The LCD screen supports touch function,to input signal and power then use directly
- 【Widely Usages】LCD screen kit,fit for DIY extended display screen,replacement panel for laptop/pc,monitoring screen etc.

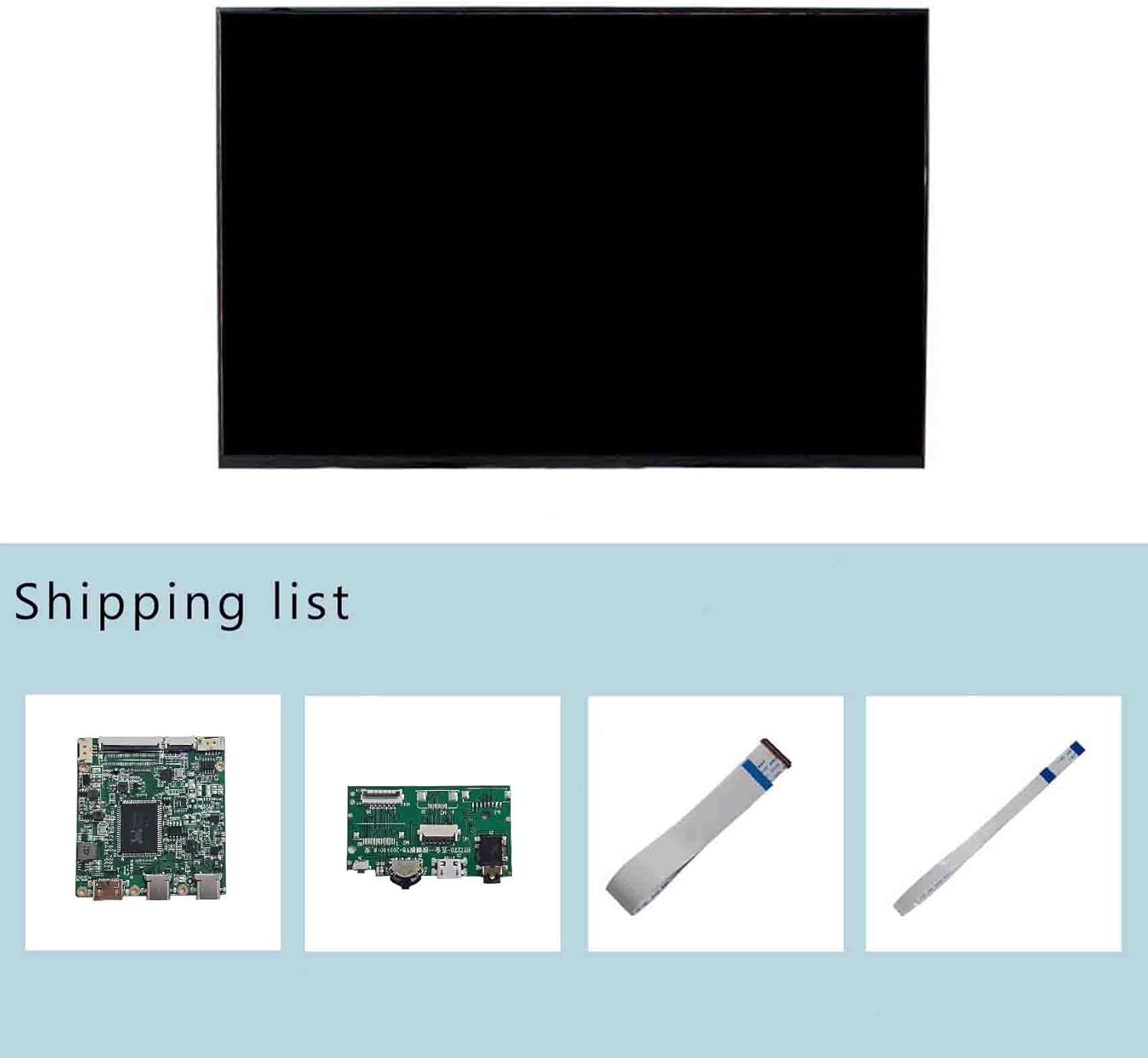

- 【Packing List】Packing list:1× USB-C LCD Controller Board VS-RTD2556HC-V2;1× 13.3inch NV133WUM 1920X1200 LCD With Capacitive Touch Panel;1x USB Cable;1× Keyboard With Cable
| UPC | 619438594588 |
|---|---|
| Brand | VSDISPLAY |
| Color | 13.3'' touchscreen with Board |
| Shape | rectangular prism |
| Brightness | 250 Candela |
| Model Name | NV133WUM |
| Resolution | UXGA Wide |
| Item Weight | 8.96 ounces |
| Screen Size | 13.3 Inches |
| Aspect Ratio | 16:10 |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Model Number | K003193 |
| Refresh Rate | 60 Hz |
| Adaptive Sync | FreeSync |
| Screen Finish | Matte |
| Viewing Angle | 178 Degrees |
| Contrast Ratio | 800:1 |
| Has Color Screen | Yes |
| Native Resolution | 1920x1200 |
| Compatible Devices | Laptop |
| Display Technology | LCD |
| Total USB 20 Ports | 1 |
| Additional Features | Touchscreen |
| Hardware Connectivity | USB Type C |
| Connectivity Technology | USB Type C |
| Item Dimensions D x W x H | 0.19"D x 11.48"W x 7.46"H |
| Specific Uses For Product | Multimedia/Gaming/Business/Personal |
| Display Resolution Maximum | 1920 x 1200 Pixels |
| Picture Quality Enhancement Technology | / |
